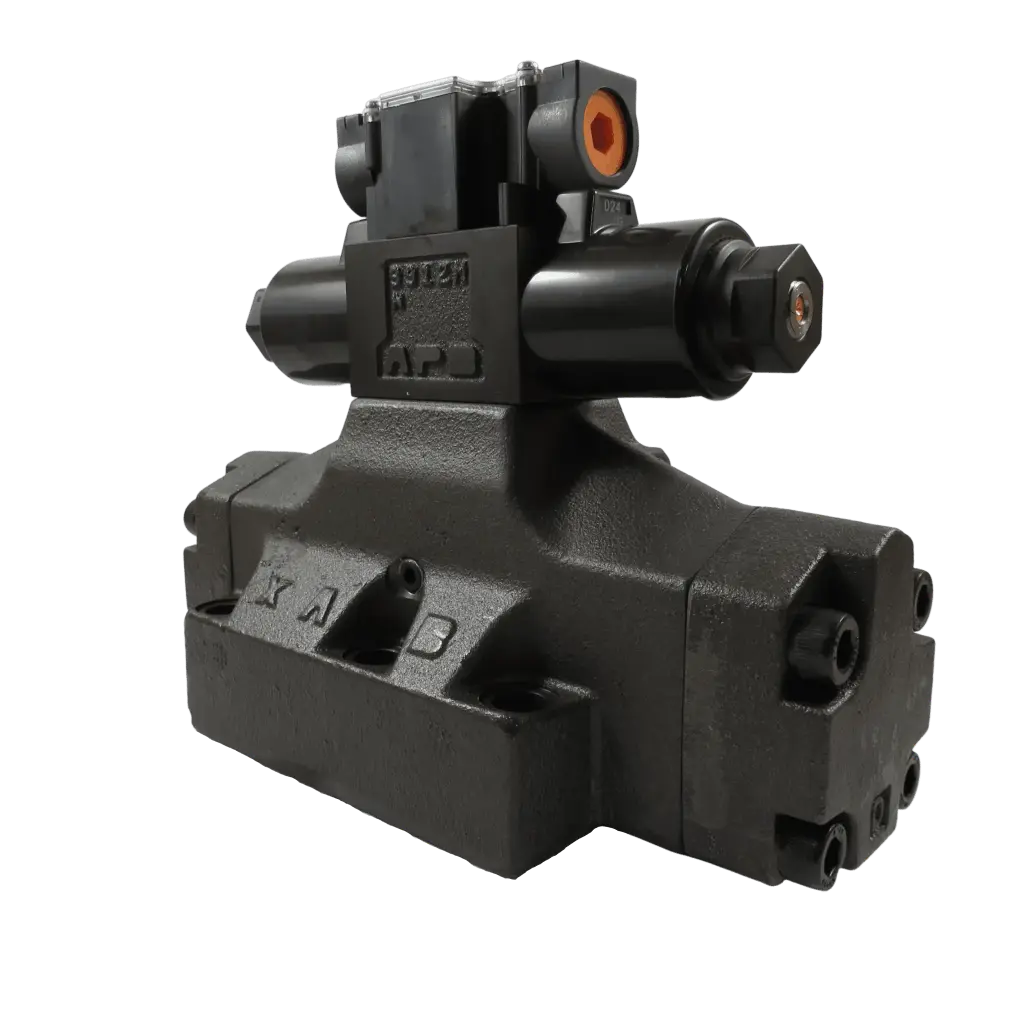

The YUKEN DSHG-06-3C4-D24 Hydraulic Valve is a premium solenoid controlled pilot operated directional valve engineered for efficient hydraulic flow control in industrial and heavy-duty applications. Manufactured by YUKEN, this valve is designed to control the direction of hydraulic oil flow for actuator movement, cylinder operation, and hydraulic system automation.
The DSHG-06 series combines high-pressure handling capability with high flow performance, enabling compact and energy-efficient hydraulic system design. When the solenoid is energized, the pilot valve directs oil flow to shift the main spool, thereby changing the hydraulic flow direction within the circuit.
This model operates on a 24V DC supply and is suitable for industrial hydraulic machinery, presses, injection molding machines, power packs, and automation systems. Its robust construction ensures low pressure drop, smooth spool operation, reliable switching, and long operational life even in demanding industrial environments.
Specifications:
-
Product Model: DSHG-06-3C4-D24
-
Brand: YUKEN
-
Product Type: Hydraulic Directional Control Valve
-
Valve Type: Solenoid Controlled Pilot Operated
-
Operating Voltage: 24V DC
-
Size: 06
-
Maximum Flow Capacity: 500 L/min
-
Maximum Operating Pressure: 315 kgf/cm²
-
Media: Hydraulic Oil
-
Mounting Type: Subplate Mounted
-
Features: High Flow Capacity, Low Pressure Drop, Durable Construction, Reliable Switching
-
Applications: Hydraulic Power Packs, Industrial Machinery, Press Machines, Automation Systems, Heavy Engineering Equipment
