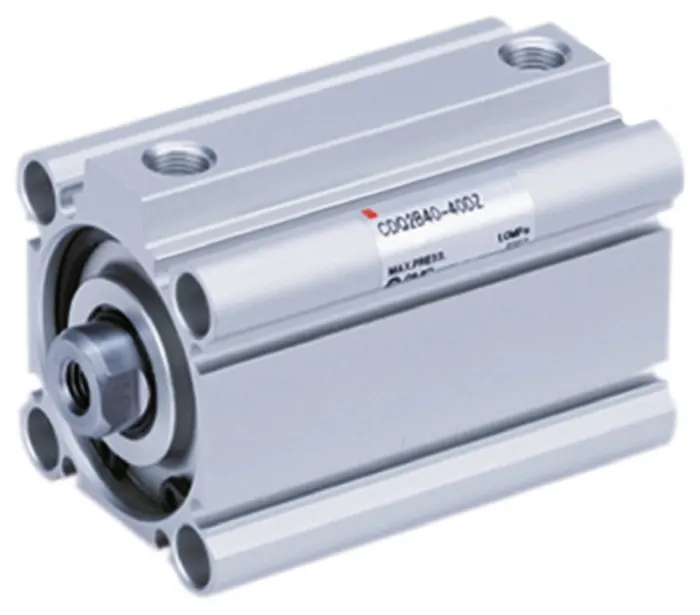

PNE CYLINDER CDQ2B32TF-30DZ SMC

PNE CYLINDER CDQ2B32TF-30DZ SMC

https://www.mventus.com/web/image/product.template/13184/image_1920?unique=71565a8
  • Double acting, single rod, compact cylinder
  • Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range (mm): 5 to 100
  • Port threads: M (12 to 25 bore); Rc, NPT or G (32 to 100 bore)
  • Auto switch capable
Read More

260.00 SR 260.0 SAR 260.00 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU:
Product Code:



  • Double acting, single rod, compact cylinder
  • Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range (mm): 5 to 100
  • Port threads: M (12 to 25 bore); Rc, NPT or G (32 to 100 bore)
  • Auto switch capable
Specification Value
Brand SMC
Series CDQ2
Product Type Pneumatic Compact Cylinder
Action Type Double Acting
Bore Size 32 mm
Mount Type Through Hole
Cushioning Type Rubber Bumper
Body Material Aluminium Alloy
Length 60 mm
Stroke Length 30 mm
Maximum Operating Pressure 1 MPa
Maximum Piston Speed 500 mm/s
Minimum Operating Temperature -10°C
Rod Type Single
Piston Rod Gender Female
Piston Rod Thread Standard Metric
Maximum Operating Temperature 70°C
Width 49.5 mm
Height 45 mm
Weight 235 g
Standards/Approvals No
