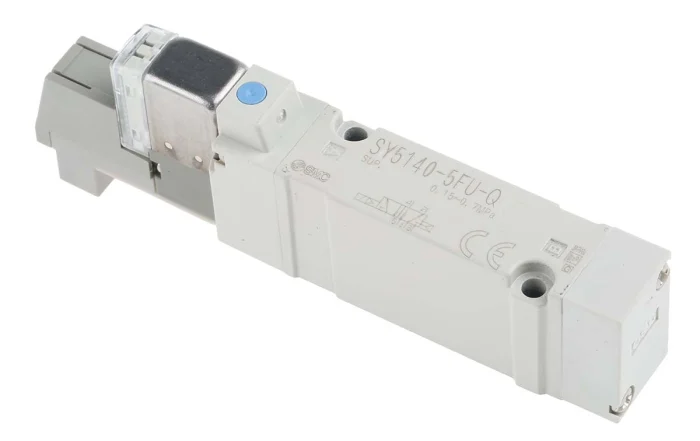

SOLENOID VALVE SY5140-5FU-Q SMC

SOLENOID VALVE SY5140-5FU-Q SMC

https://www.mventus.com/web/image/product.template/24909/image_1920?unique=5171829
SY5000 Z Series Valves

  • Delivers higher flow capacity compared to body-ported SY type valves (Cv 0.3 for 3000 series, Cv 0.7 for 5000 series)

  • Compact and lightweight design, suitable for tight installation spaces

  • Low power consumption enables direct PLC control

  • Long service life exceeding 50 million cycles

  • Available in 5/2 and 5/3 valve configurations

  • Supports L-type pinch plug or DIN plug connections

  • Equipped with non-locking manual override

SMC SY Z Series

The SY Z Series offers modular, DIN rail-mounted solenoid valves and accessories designed for pneumatic systems. These valves operate using compressed, filtered air (lubricated or non-lubricated) and are suitable for working temperatures ranging from -10°C to +50°C.

Read More

240.50 SR 240.5 SAR 240.50 SR Tax Excluded

Not Available For Sale


  • Brands

This combination does not exist.

Brands SMC
Contact Us
SKU:
Product Code: SY5140-5FU-Q



SY5000 Z Series Valves

  • Delivers higher flow capacity compared to body-ported SY type valves (Cv 0.3 for 3000 series, Cv 0.7 for 5000 series)

  • Compact and lightweight design, suitable for tight installation spaces

  • Low power consumption enables direct PLC control

  • Long service life exceeding 50 million cycles

  • Available in 5/2 and 5/3 valve configurations

  • Supports L-type pinch plug or DIN plug connections

  • Equipped with non-locking manual override

SMC SY Z Series

The SY Z Series offers modular, DIN rail-mounted solenoid valves and accessories designed for pneumatic systems. These valves operate using compressed, filtered air (lubricated or non-lubricated) and are suitable for working temperatures ranging from -10°C to +50°C.

Specification Value
Brand SMC
Function 5/2
Actuation Type Solenoid/Pilot
Manufacturer Series SY5000
Mounting Style Manifold
Solenoid Voltage 24V DC
Solenoid Fitted Yes
Number of Ports 5/2
Body Material Die Cast Aluminium
Maximum Flow Rate 687 NL/min
Solenoid Power Consumption 0.4W
Minimum Operating Pressure 0.15 MPa
Minimum Operating Temperature -10°C
Maximum Operating Temperature +50°C
Maximum Operating Pressure 0.7 MPa
