3RT2026-1AN20 SIEMENS

3RT2026-1AN20 SIEMENS

https://www.mventus.com/web/image/product.template/10876/image_1920?unique=b7e52a4
(0 review)

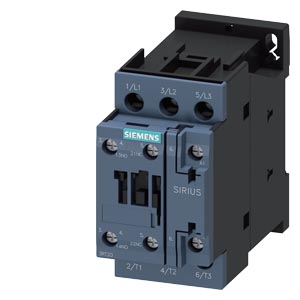

The SIRIUS 3RT2026-1AN20 is a 3-pole power contactor for switching motors and loads up to 11 kW (400 V). It operates with a 220 V AC coil (50/60 Hz) and includes 1 NO + 1 NC auxiliary contacts. Compact in size S0 with screw terminals, it ensures reliable performance, long service life, and easy installation for industrial automation and motor control applications.
Read Less

237.00 SR 237.0 SAR 237.00 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU: EL-06-006
Product Code: 3RT2026-1AN20

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

The SIRIUS 3RT2026-1AN20 is a 3-pole power contactor for switching motors and loads up to 11 kW (400 V). It operates with a 220 V AC coil (50/60 Hz) and includes 1 NO + 1 NC auxiliary contacts. Compact in size S0 with screw terminals, it ensures reliable performance, long service life, and easy installation for industrial automation and motor control applications.

Specification Value
Product Siemens SIRIUS Power Contactor (3RT2026-1AN20)
Type 3-pole, Size S0
Control Voltage 220 V AC, 50/60 Hz
Main Contacts 3 NO
Auxiliary Contacts 1 NO + 1 NC
Rated Operational Current (AC-3, 400 V) 25 A
Rated Operational Power (AC-3, 400 V) 11 kW
Rated Insulation Voltage 690 V
Surge Voltage Resistance 6 kV
Mechanical Service Life 10 million operations
Protection IP20
Operating Temperature -25 °C … +60 °C
Storage Temperature -55 °C … +80 °C
Mounting DIN rail (35 mm), screw/snap-on
Dimensions (W x H x D) 45 mm x 85 mm x 97 mm
Weight 0.417 kg
Approvals CE, UL, CSA, Marine
