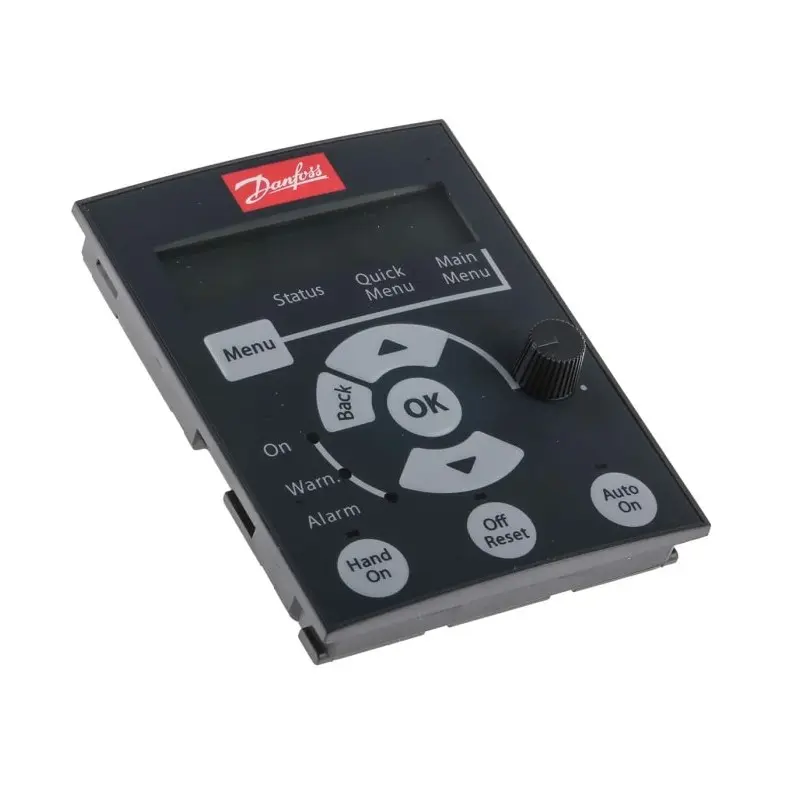

The Danfoss 132B0101 LCP 12 Control Panel is a high-quality local control interface specifically designed for use with the VLT® Micro Drive FC-51 series frequency converters. Manufactured by Danfoss, this operator panel features an integrated potentiometer for convenient motor speed adjustment and drive control directly from the panel.
The LCP 12 panel allows users to perform quick commissioning, parameter configuration, alarm acknowledgment, and manual/auto operation switching with ease. Its clear numeric display and navigation keys simplify monitoring and setup of the frequency converter during operation. The built-in copy function enables saving and transferring drive parameters between compatible devices, reducing setup time in industrial environments.
Designed with a compact enclosed housing, the panel offers IP20 protection with front-side IP54 protection, ensuring reliable operation in industrial applications. It is removable during operation and suitable for pumps, fans, conveyors, compressors, and general industrial motor control systems using Danfoss FC-51 drives.
Specifications:
-
Product Model: 132B0101
-
Product Name: LCP 12 Control Panel with Potentiometer
-
Brand: Danfoss
-
Compatible Series: VLT® Micro Drive FC-51
-
Type: Drive Operator / Control Panel
-
Display Type: Numeric Display
-
Protection Class: IP20 / Front IP54
-
Features: Integrated Potentiometer, Parameter Copy Function, Manual/Auto Switching, Alarm Reset
-
Mounting: Front Panel / Local Operator Interface
-
Applications: Frequency Converter Control, Motor Speed Adjustment, Industrial Automation, Drive Parameter Configuration
