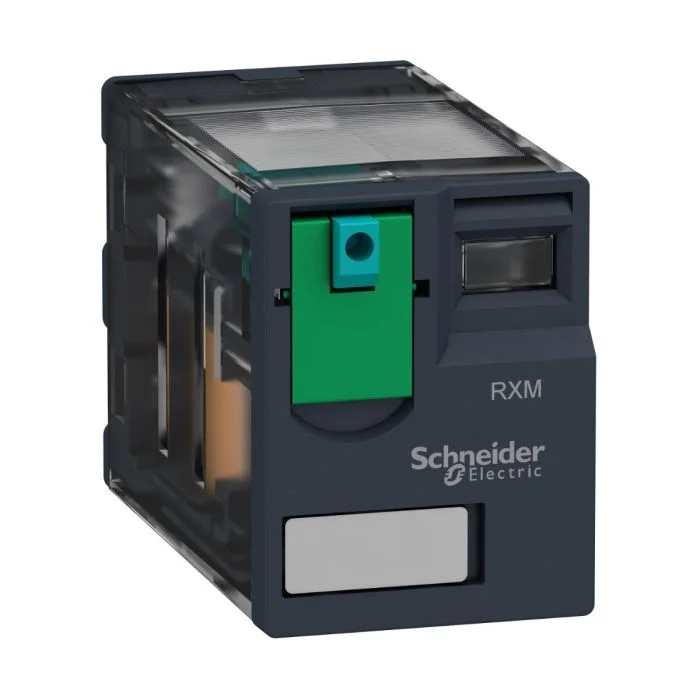

The Schneider Electric RXM4AB1BD miniature plug-in relay from the Harmony RXM series is a reliable industrial electromechanical relay designed for automation and control systems. Featuring a 24V DC control coil and 4 changeover (4CO/4PDT) contacts, this relay delivers dependable switching performance for PLC interfaces, motor controls, machinery automation, HVAC systems, packaging equipment, and industrial electrical panels. The relay includes a lockable test button and mechanical status indicator for simplified maintenance and troubleshooting. Its compact plug-in design allows easy installation on compatible RXZE relay sockets while providing long mechanical and electrical durability for continuous industrial operation.
Product Specifications
| Specification | Details |
| Brand | Schneider Electric |
| Model | RXM4AB1BD |
| Product Series | Harmony RXM |
| Product Type | Miniature Plug-in Relay |
| Coil Voltage | 24V DC |
| Contact Configuration | 4CO / 4PDT |
| Rated Current | 6 A |
| Mounting Type | Plug-in Socket Mount |
| Contact Material | Silver Nickel (AgNi) |
| Rated Switching Voltage | 250V AC / 28V DC |
| Coil Resistance | 650 Ohms |
| Power Consumption | Approx. 0.9 – 1.1 W |
| Operating Time | 20 ms |
| Reset Time | 20 ms |
| Protection Rating | IP40 |
| Operating Temperature | -40°C to +55°C |
| Mechanical Durability | 10 Million Operations |
| Electrical Durability | 100,000 Operations |
| Features | Lockable Test Button, Mechanical Indicator |
| Applications | PLC Panels, Automation, HVAC, Motor Control |
| Country of Brand Origin | France (Schneider Electric) |
