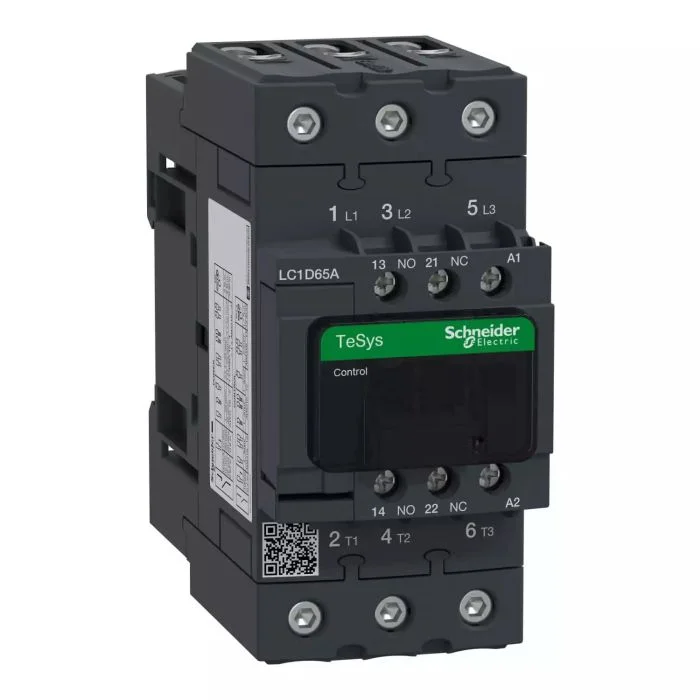

The Schneider Electric LC1D65AE7 TeSys Deca Contactor is a high-performance IEC motor control contactor engineered for reliable switching of three-phase motors and power circuits in demanding industrial environments. Featuring a 3-pole (3NO) configuration and a 65A AC-3 operational rating, the contactor is suitable for motor control applications up to 30 kW at 400V AC. The unit operates using a 48V AC 50/60Hz control coil and includes built-in auxiliary contacts (1NO + 1NC) for control and signaling functions. Designed as part of Schneider Electric’s TeSys Deca range, the contactor offers high electrical endurance, compact dimensions, DIN rail or panel mounting capability, and compatibility with overload relays and motor starter assemblies. It is widely used in pumps, compressors, conveyors, HVAC systems, machine tools, process plants, and industrial automation control panels.
Product Specifications
| Specification | Details |
| Brand | Schneider Electric |
| Model | LC1D65AE7 |
| Series | TeSys Deca |
| Product Type | Power Contactor |
| Contactor Type | 3 Pole Contactor |
| Pole Configuration | 3P (3 NO) |
| Built-In Auxiliary Contacts | 1 NO + 1 NC |
| Rated Operational Current (AC-3/AC-3e) | 65 A |
| Thermal Current (Ith) | 80 A |
| Coil Voltage | 48V AC |
| Coil Frequency | 50/60 Hz |
| Motor Power @ 400V AC-3 | 30 kW |
| Motor Power @ 500V AC-3 | 37 kW |
| Motor Power @ 690V AC-3 | 37 kW |
| Rated Operational Voltage | Up to 690V AC |
| Rated Insulation Voltage (Ui) | 690V |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Utilization Category | AC-1, AC-3, AC-3e, AC-4 |
| Mounting Type | DIN Rail / Panel Mount |
| Terminal Type | Screw Clamp Terminals |
| Mechanical Durability | 6 Million Operations |
| Electrical Durability | 1.4 Million Operations |
| Protection Rating | IP20 |
| Width | 55 mm |
| Height | 122 mm |
| Depth | 120 mm |
| Weight | 0.86 kg |
| Application | Motor Control & Industrial Automation |
| Suitable For | Pumps, Compressors, Conveyors, HVAC Systems |
| Country of Brand Origin | France |
