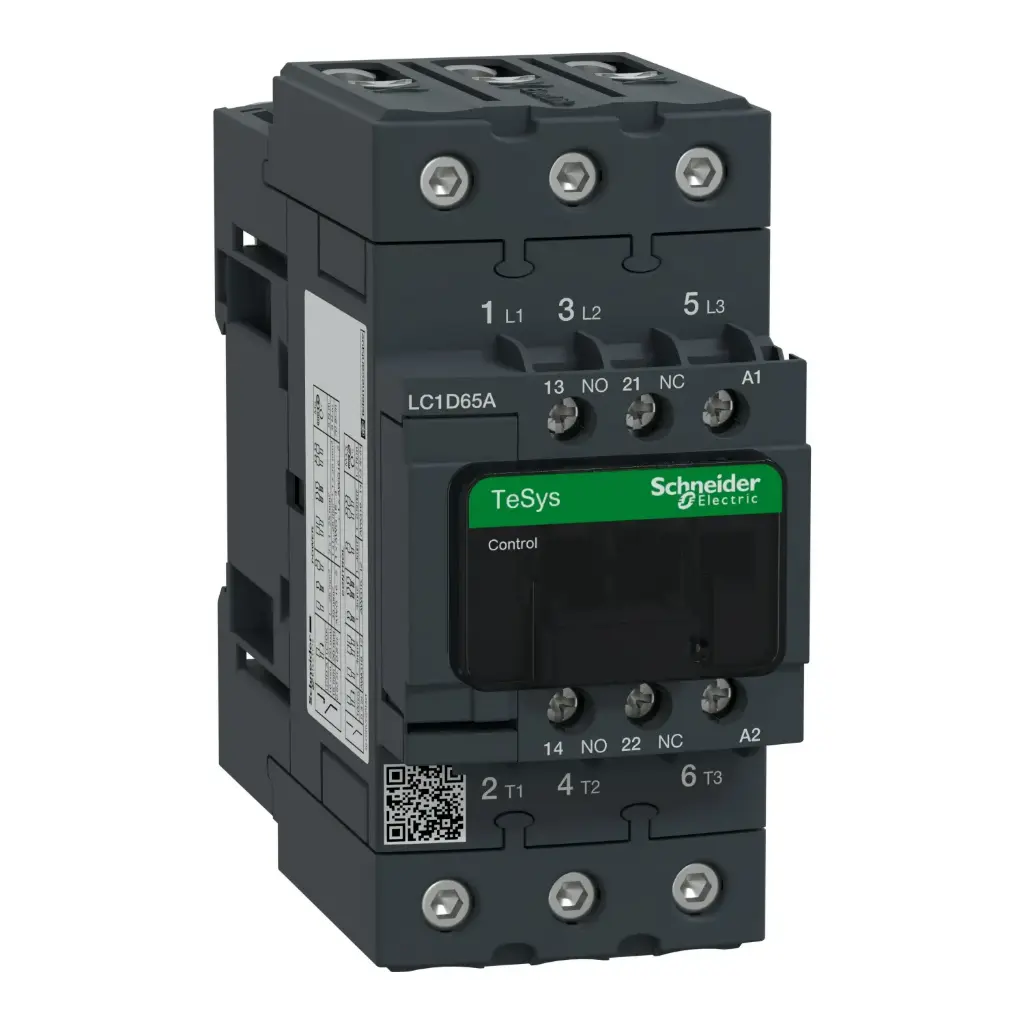

The Schneider Electric LC1D65AF7 TeSys Deca Contactor is a high-performance IEC motor control contactor engineered for heavy-duty industrial automation and electrical switching applications. Featuring a 3-pole (3NO) contact configuration with a 65A AC-3 operational rating, the contactor is suitable for controlling three-phase motors up to 30 kW at 400V AC. The unit operates using a 110V AC 50/60Hz control coil and includes integrated auxiliary contacts for control and signaling functions. Part of Schneider Electric’s TeSys Deca range, the LC1D65AF7 offers high electrical endurance, compact dimensions, DIN rail or panel mounting capability, and compatibility with overload relays and motor starter assemblies. It is widely used in pumps, compressors, conveyors, HVAC systems, process plants, manufacturing machinery, and industrial control panels requiring dependable motor switching performance.
Product Specifications
| Specification | Details |
| Brand | Schneider Electric |
| Model | LC1D65AF7 |
| Series | TeSys Deca |
| Product Type | Power Contactor |
| Contactor Type | 3 Pole Contactor |
| Pole Configuration | 3P (3 NO) |
| Rated Operational Current (AC-3/AC-3e) | 65 A |
| Thermal Current (Ith) | 80 A |
| Coil Voltage | 110V AC |
| Coil Frequency | 50/60 Hz |
| Built-In Auxiliary Contacts | 1 NO + 1 NC |
| Motor Power @ 400V AC-3 | 30 kW |
| Motor Power @ 500V AC-3 | 37 kW |
| Motor Power @ 690V AC-3 | 37 kW |
| Rated Operational Voltage | Up to 690V AC |
| Rated Insulation Voltage (Ui) | 690V |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Utilization Category | AC-1, AC-3, AC-3e, AC-4 |
| Mounting Type | DIN Rail / Panel Mount |
| Terminal Type | Screw Clamp Terminals |
| Mechanical Durability | Up to 6 Million Operations |
| Electrical Durability | Up to 1.4 Million Operations |
| Protection Rating | IP20 |
| Application | Motor Control & Industrial Automation |
| Suitable For | Pumps, Compressors, Conveyors, HVAC Systems |
| Country of Brand Origin | France |
