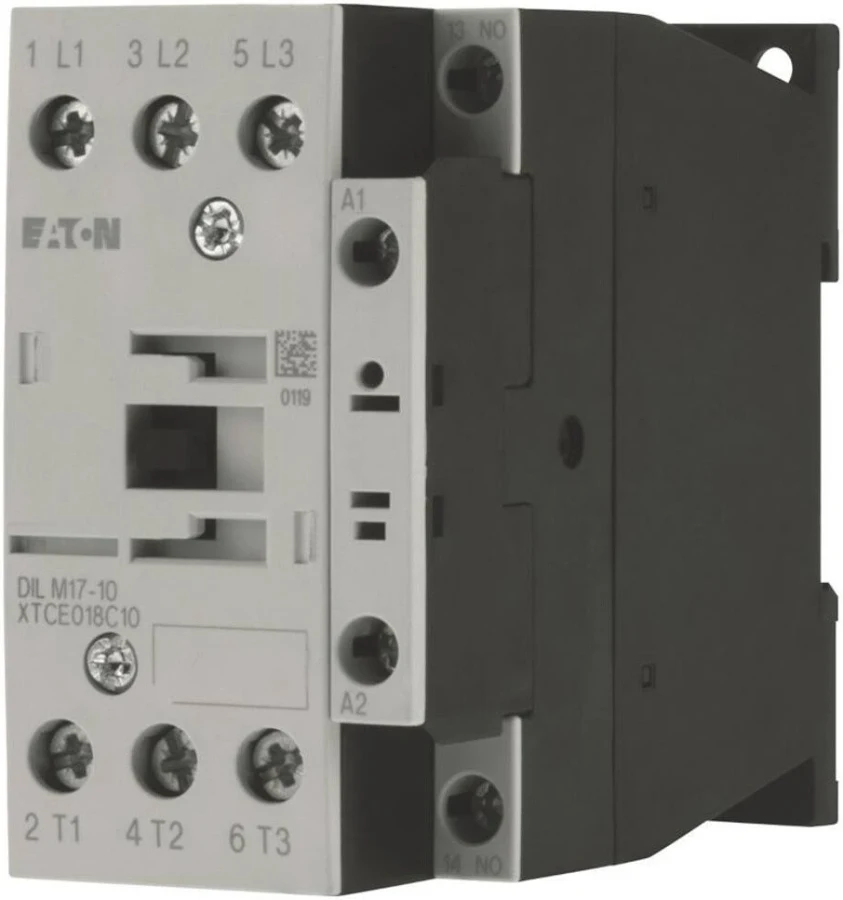

The Eaton DILM17-10 (Part No. 277012) is a heavy-duty industrial power contactor from Eaton’s Moeller DILM series, engineered for motor control, machinery automation, HVAC systems, pumps, compressors, conveyors, and industrial switching applications. The contactor features a 3-pole main contact configuration with an integrated 1 Normally Open (1NO) auxiliary contact and a 230V AC 50/60Hz operating coil. Designed according to IEC industrial control standards, the DILM17-10 provides reliable switching performance, compact installation dimensions, high electrical endurance, and compatibility with overload relays and motor starter assemblies. Its robust construction and screw terminal connections make it suitable for industrial control panels, OEM machinery, manufacturing plants, and automation systems requiring dependable motor control performance.
Product Specifications
| Specification | Details |
| Brand | Eaton |
| Series | DILM Series |
| Model | DILM17-10 |
| Part Number | 277012 |
| Product Type | Power Contactor |
| Category | Motor Control Contactor |
| Main Contacts | 3 Pole (3NO) |
| Auxiliary Contacts | 1 NO |
| Rated Operational Current (AC-3) | 17 A |
| Coil Voltage | 230V AC |
| Coil Frequency | 50/60 Hz |
| Motor Rating @ 400V AC-3 | 7.5 kW |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage | Up to 690 V AC |
| Utilization Category | AC-1, AC-3 |
| Connection Type | Screw Terminal |
| Mounting Type | DIN Rail / Panel Mount |
| Mechanical Durability | High Industrial Duty |
| Electrical Durability | Industrial Grade |
| Protection Class | IP20 |
| Application | Motor Switching & Automation |
| Suitable For | Pumps, Compressors, Conveyors, HVAC |
| Standards | IEC Industrial Control Standards |
| Country of Brand Origin | Germany |
