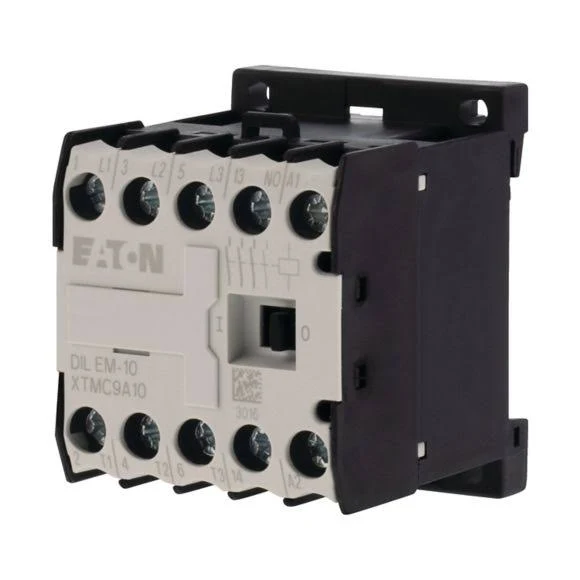

The Eaton Moeller DILEM-10 (Part No. 051782) is a compact industrial mini contactor engineered for switching three-phase motors and resistive loads in automation systems and industrial control panels. The contactor features three normally open main contacts (3NO) along with one integrated normally open auxiliary contact (1NO) for signaling, interlocking, and control circuit applications. Operating with a 42V AC 50Hz or 48V AC 60Hz control coil, the DILEM-10 is suitable for motor starters, pumps, compressors, conveyors, HVAC systems, machine tools, packaging equipment, and factory automation systems. Built according to IEC/EN 60947 standards, the unit provides reliable switching performance, compact dimensions, DIN rail or panel mounting capability, screw terminal connections, and high mechanical durability for demanding industrial environments.
Product Specifications
| Specification | Details |
| Brand | Eaton |
| Series | Moeller DILEM Series |
| Model | DILEM-10 |
| Part Number | 051782 |
| Product Type | Mini Power Contactor |
| Category | Motor Control Contactor |
| Main Contacts | 3 Pole (3NO) |
| Auxiliary Contacts | 1 NO Built-In |
| Rated Operational Current (AC-3 @ 400V) | 9 A |
| Rated Operational Current (AC-1) | 22 A |
| Coil Voltage | 42V AC (50Hz) / 48V AC (60Hz) |
| Coil Type | AC Operation |
| Motor Rating @ 230V AC-3 | 2.2 kW |
| Motor Rating @ 400V AC-3 | 4 kW |
| Motor Rating @ 690V AC-3 | 4 kW |
| Rated Operational Voltage (Ue) | Up to 690V AC |
| Rated Insulation Voltage (Ui) | 690V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Utilization Category | AC-1, AC-3, AC-4 |
| Connection Type | Screw Terminal |
| Mounting Type | DIN Rail / Panel Mount |
| Mechanical Life | Up to 10 Million Operations |
| Electrical Endurance | Industrial Duty Rated |
| Protection Class | IP20 |
| Ambient Operating Temperature | -25°C to +50°C |
| Width | 45 mm |
| Height | 58 mm |
| Depth | 52 mm |
| Weight | Approx. 0.17 kg |
| Standards | IEC/EN 60947-4-1, UL 508, CSA |
| Application | Motor Switching & Industrial Automation |
| Suitable For | Pumps, Fans, Compressors, Conveyors, HVAC |
| Country of Brand Origin | Germany |
