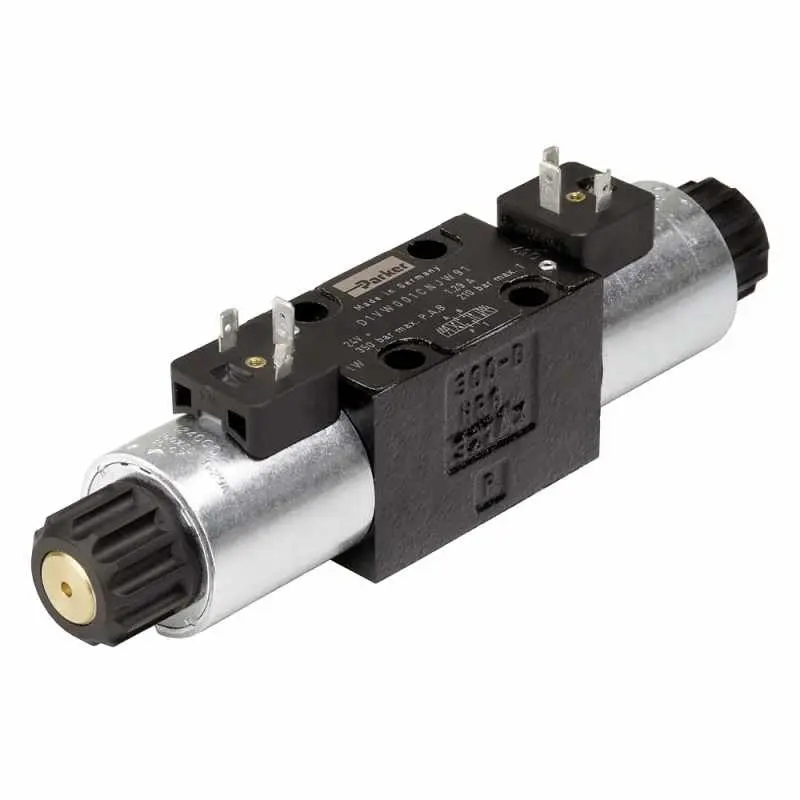

The Parker D1VW004CNJW91 hydraulic solenoid valve is a high-performance direct-operated directional control valve engineered for precise hydraulic flow switching in industrial and mobile hydraulic systems. Part of Parker’s D1VW series, the valve conforms to CETOP 3 / NG06 mounting standards and provides reliable directional control with low pressure drop and fast response characteristics. The wet-armature solenoid design ensures dependable operation under demanding industrial conditions while supporting high operating pressures up to 350 bar. Designed for hydraulic power packs, presses, machine tools, automation systems, material handling equipment, and industrial machinery, the valve offers robust cast iron construction, efficient hydraulic flow management, and long service life. The compact manifold/subplate mounting design simplifies installation and integration into hydraulic circuits.
Product Specifications
| Specification | Details |
| Brand | Parker Hannifin |
| Model | D1VW004CNJW91 |
| Product Type | Hydraulic Solenoid Directional Control Valve |
| Valve Series | D1VW |
| Valve Type | Directional Control Valve |
| Mounting Standard | CETOP 3 / NG06 |
| Actuation Type | Solenoid Operated |
| Operation Type | Direct Operated |
| Number of Positions | 3 Position |
| Spool Code | 004 |
| Seal Material | NBR |
| Operating Voltage | 24V DC |
| Mounting Type | Subplate / Manifold Mount |
| Maximum Flow Rate | 80 L/min |
| Maximum Pressure (P, A, B Ports) | 350 Bar |
| Maximum Tank Pressure (T Port) | 210 Bar |
| Body Material | Cast Iron |
| Fluid Type | Hydraulic Oil |
| Temperature Range | -25°C to +60°C |
| Electrical Connection | Connector as per EN 175301-803 |
| Application | Industrial Hydraulic Control Systems |
| Suitable For | Hydraulic Power Packs, Presses, Automation Equipment |
| Country of Brand Origin | USA |
