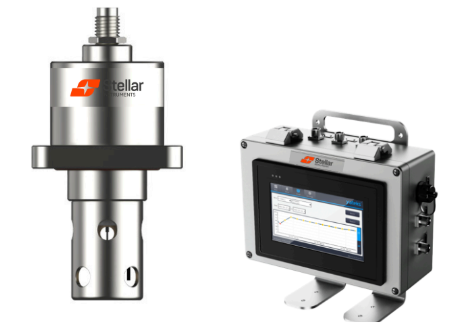

Online Oil CondiƟon Sensor - 4-in-1 with Display

Online Oil CondiƟon Sensor - 4-in-1 with Display

https://www.mventus.com/web/image/product.template/7532/image_1920?unique=d074406
(0 review)
OCS41 oil condition sensor adopts piezoelectric resonance MEMS elements, through the internal integration of high-precision signal sampling and processing unit, combined with the built-in algorithm, can real-time automatic detection of liquid temperature, kinematic viscosity, density, dielectric constant, water activity, water content, water content, dynamic viscosity of eight indicators.
Read Less

19,200.00 SR 19200.0 SAR 19,200.00 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU: IN-01-001
Product Code: OCS41D

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

OCS41 oil condition sensor adopts piezoelectric resonance MEMS elements, through the internal integration of high-precision signal sampling and processing unit, combined with the built-in algorithm, can real-time automatic detection of liquid temperature, kinematic viscosity, density, dielectric constant, water activity, water content, water content, dynamic viscosity of eight indicators.

Specification Value
Viscosity 1~500cSt OR 1~1000cSt | Accuracy: ±5~8%
Density 600~1250kg/m³ | Accuracy: ±2%
Oil Quality (Dielectric constant) 1-6 level | Accuracy: ±5%
Temperature 0~100ºC | Accuracy: ±0.5ºC
Water content 0.5 m/s , Additional adjust valve needed if the flow rate is too high
Online Pressure <10 bar (Higher pressure recommended equip with optional pressure reduce valve)
Working temperature 0-2000 ppm | Accuracy: ±10% or 10ppm
Working hours -20ºC~80ºC
Power Supply DC 24V±10%
IP Rate IP65
Signal communication RS485 and 4-20mA
Mechanical Interface Flange, φ32*57mm
Cable interface M8*6pin
Weight 0.2 Kg
Dimension Length 58 x 38mm
