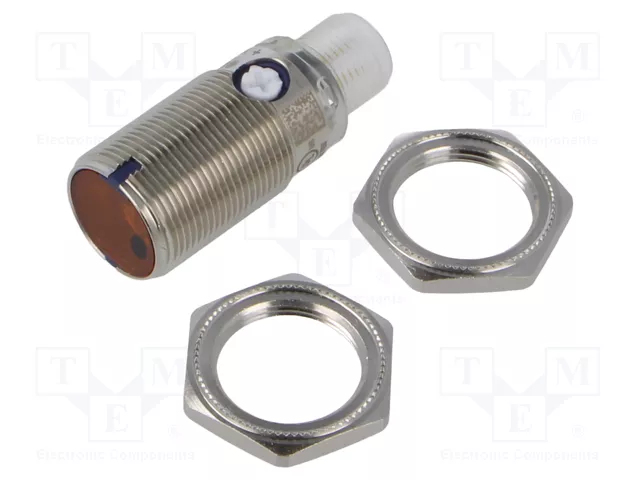

The Telemecanique XUB9BPXNM12 photoelectric sensor from Schneider Electric’s XU series is a high-performance industrial optical sensor engineered for precise non-contact object detection in demanding automation environments. Designed with a rugged cylindrical M18 metal housing, the sensor uses polarized reflex detection technology with a maximum sensing range of 7 meters and requires a compatible reflector for operation. It features a programmable PNP output with selectable NO/NC functionality and a standard M12 connector for quick industrial installation. The sensor provides fast response times, high immunity to ambient light interference, and excellent resistance to vibration, shock, dust, and moisture with IP65/IP67/IP69K protection ratings. It is widely used in conveyors, packaging machinery, material handling systems, elevators, automated storage systems, and factory automation applications.
Product Specifications
| Specification | Details |
| Brand | Telemecanique / Schneider Electric |
| Model | XUB9BPXNM12 |
| Product Type | Photoelectric Sensor |
| Sensor Series | XU |
| Sensor Type | Polarized Reflex Photoelectric Sensor |
| Sensor Design | Cylindrical M18 |
| Housing Material | Metal |
| Detection Method | Polarized Reflex |
| Maximum Sensing Distance | 7 m |
| Nominal Sensing Distance | 5 m |
| Output Type | PNP |
| Output Function | 1 NO or 1 NC Programmable |
| Supply Voltage | 12 – 24V DC |
| Voltage Range | 10 – 30V DC |
| Wiring Technique | 4 Wire |
| Connection Type | M12 Male Connector, 4 Pin |
| Light Source | Red LED |
| Switching Frequency | Up to 1000 Hz |
| Current Consumption | < 20 mA |
| Response Time | 0.5 ms |
| Protection Rating | IP65 / IP67 / IP69K |
| Operating Temperature | -30°C to +55°C |
| Lens Material | PMMA |
| Enclosure Material | PC/PBT |
| Adjustment Method | Potentiometer Sensitivity Adjustment |
| Certifications | CE, cULus, UKCA, RoHS |
| Applications | Conveyors, Packaging Machines, Material Handling, Automation |
| Country of Brand Origin | France |
