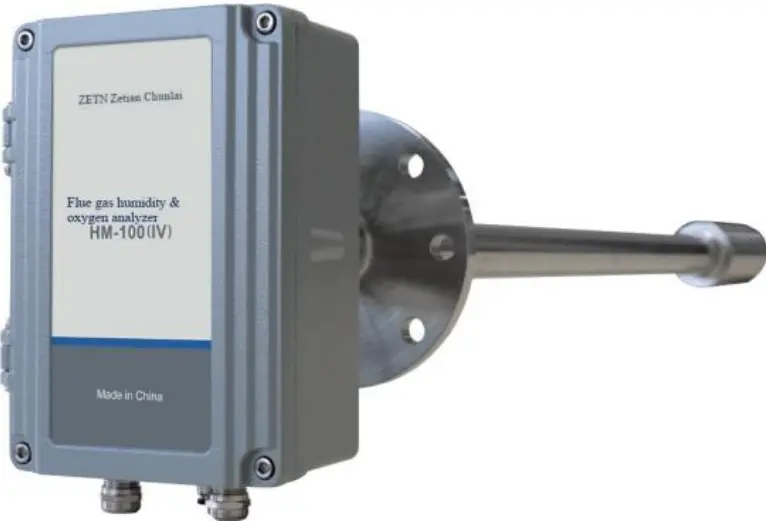

HM-100(Ⅳ) Flue gas humidity & oxygen analyzer

The HM-100(IV) is an online analyzer designed for continuous measurement of humidity and oxygen in flue gas. It uses solid-state electrolytic sensor technology for accurate and stable performance in high-temperature and harsh industrial conditions.

With features like self-heating, anti-corrosion design, and high-temperature resistance (up to 500°C), it ensures reliable long-term operation. Ideal for use in CEMS and industrial process monitoring.

8,775.00 SR 8775.0 SAR 8,775.00 SR Tax Excluded

This combination does not exist.

Add to cart Buy now

SKU: IN-05-001

Specification	Value
Measurement principle	Limit current method (humidity); zirconia electrolysis method (oxygen)
Measurement range	0~40% (H2O); 0~25% (O2)
Repeatability	Not exceeding ±1.5%
Accuracy	Humidity: ≤5% (±1.5% abs), >5% (±25% rel); Oxygen: ≤±15%
Response time (T90)	<20s
Installation method	Standard DN65 flange, customizable
Probe length	Standard 0.8m, customizable
Flue gas temperature	0~250°C; up to 500°C (customizable)
Output signal	4-20mA, RS485
Display mode	Capacitive screen, IP65
Ambient temperature	-20~50°C
Ambient humidity	≤95%RH, no condensation
Power supply	AC (220±22)V, (50±1)Hz
Power consumption	Approximately 15W
Overall dimensions and weight	160×1050×225 mm, approx. 10kg

HM-100(Ⅳ) Flue gas humidity & oxygen analyzer

8,775.00 SR 8775.0 SAR 8,775.00 SR Tax Excluded

Not Available For Sale

SKU: IN-05-001

Product Code: HM-100
