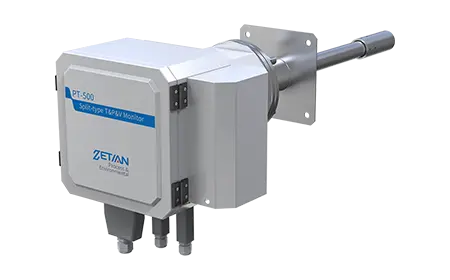

PT-500 temperature-pressure-flow integrated monitor

PT-500 temperature-pressure-flow integrated monitor

https://www.mventus.com/web/image/product.template/24907/image_1920?unique=c1588c0

The PT-500 is an integrated instrument designed for continuous measurement of temperature, pressure, and flow rate in flue gas pipelines. It uses a high-precision differential pressure sensor and pitot tube principle to deliver accurate readings, even at low flow velocities.

It features automatic zero calibration, a back-blowing system to prevent blockage, and an LCD display for easy monitoring. Built with anti-corrosion materials, it ensures reliable performance in harsh industrial environments.

Ideal for use in Continuous Emission Monitoring Systems (CEMS) and industrial process monitoring.

Read More

10,725.00 SR 10725.0 SAR 10,725.00 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU: IN-05-002
Product Code: PT-500



The PT-500 is an integrated instrument designed for continuous measurement of temperature, pressure, and flow rate in flue gas pipelines. It uses a high-precision differential pressure sensor and pitot tube principle to deliver accurate readings, even at low flow velocities.

It features automatic zero calibration, a back-blowing system to prevent blockage, and an LCD display for easy monitoring. Built with anti-corrosion materials, it ensures reliable performance in harsh industrial environments.

Ideal for use in Continuous Emission Monitoring Systems (CEMS) and industrial process monitoring.

Specification Value
Measuring principle Temperature: platinum resistance (or thermocouple); pressure: pressure sensor; flow rate: pitot tube + pressure transmitter
Accuracy of measured components and ranges Temperature: (-40~300~800°C) (range customizable); Pressure: (-10~10)kPa; Flow rate: 0~40m/s or 0~15m/s (optional); Temperature: ≤±3℃; Pressure: ±10%; Flow rate: V<10m/s, ±12%, V≥10m/s, ±10%
Response time (T90) and pitot tube material ≤90s; Stainless steel 316L/PTFE/stainless steel 2205
Pitot tube insertion length Customizable: 400mm, 800mm, 1200mm, 1700mm (0.2~0.4MPa)
Output signal 4 channels of 4-20mA, 2 channels of RS485
Dielectric strength At (10~35)℃ and RH ≤85%, withstand 1500V, 50Hz for 1 minute without breakdown
Insulation resistance At (10~35)℃ and RH ≤85%, ≥20MΩ
Protection level IP65
Ambient temperature (-20~50)℃
Ambient humidity ≤90%RH, no condensation
Power supply AC (220±22)V, (50±1)Hz
Overall dimensions and weight 260(W)×190(D)×260(H)mm (chassis), approx. 9kg (including flange)
