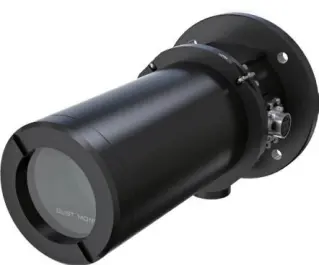

DMS-100 Dust concentration meter (backscatter type)

DMS-100 Dust concentration meter (backscatter type)

https://www.mventus.com/web/image/product.template/24906/image_1920?unique=10e87c7

The DMS-100 is an advanced industrial dust monitoring device designed for continuous, real-time measurement of particulate concentration in flue gas. Using laser backscattering technology, it delivers reliable and accurate readings even in challenging industrial environments.

Built for ease of installation and operation, the unit features a compact design, infrared remote control, and an integrated display for quick on-site monitoring. Its robust construction and advanced signal processing ensure stable performance with minimal maintenance.

Ideal for industries such as power plants, cement, steel, petrochemical, and waste treatment, the DMS-100 helps maintain emission compliance and improve process control.

Read More

6,825.00 SR 6825.0 SAR 6,825.00 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU: IN-05-003
Product Code: DMS-100



The DMS-100 is an advanced industrial dust monitoring device designed for continuous, real-time measurement of particulate concentration in flue gas. Using laser backscattering technology, it delivers reliable and accurate readings even in challenging industrial environments.

Built for ease of installation and operation, the unit features a compact design, infrared remote control, and an integrated display for quick on-site monitoring. Its robust construction and advanced signal processing ensure stable performance with minimal maintenance.

Ideal for industries such as power plants, cement, steel, petrochemical, and waste treatment, the DMS-100 helps maintain emission compliance and improve process control.

Specification Value
Measurement principle laser backscattering method
Typical measurement range 0~500mg/m³, 0~10g/m³ (customizable)
Flue diameter / laser 0.5m~15m (customizable), 650nm, 7mW
Indication error ≤±20%
Zero drift ±2%F.S.
Range drift ±2%F.S.
Analog output 1 channel, 4-20mA, maximum load 500Ω
Communication interface RS485
Ambient temperature (-20~45)℃
Environmental humidity ≤100%RH, no condensation
Flue gas temperature 0~150℃ (customization for higher temperatures is required)
Human-computer interaction infrared remote control + LCD display
Power supply DC (24±2.4)V
Power consumption <3W
Dimensions 158(W)×158(D)×276(H)mm (excluding protruding parts)
Weight approximately 3kg
