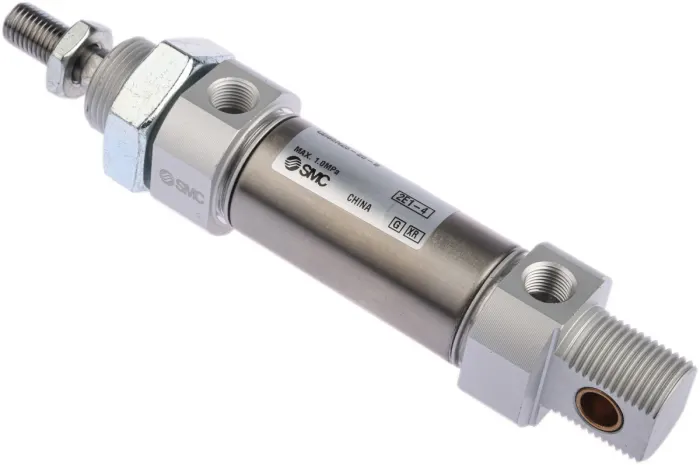

The SMC CD85N25-170C-B is a high-performance ISO 6432 standard round-body pneumatic cylinder from the C85 series engineered for reliable linear motion control in industrial automation systems. Featuring a 25mm bore and 170mm stroke, the cylinder utilizes a double-acting single-rod design for smooth and stable pneumatic operation. Constructed with a stainless steel body and integrated cushioning system, the cylinder provides excellent durability, corrosion resistance, and dependable performance in demanding industrial environments. The built-in magnet allows compatibility with auto switches for position sensing and automation feedback integration. Its compact round-body construction and ISO-standard dimensions make it suitable for machine automation, packaging equipment, conveyors, pick-and-place systems, and general industrial pneumatic motion applications.
Specifications
| Specification | Value |
| Product Name | SMC CD85N25-170C-B |
| Brand | SMC |
| Series | C85 Series |
| Main Category | Pneumatics |
| Sub-Category | Pneumatic Cylinders |
| Product Type | ISO Standard Pneumatic Cylinder |
| Cylinder Type | Round Body Cylinder |
| Action Type | Double Acting |
| Bore Size | 25 mm |
| Stroke Length | 170 mm |
| Rod Type | Single Rod |
| Piston Rod Thread | M10 × 1.25 |
| Mounting Type | Axial Mount |
| Cushioning Type | Rubber Bumper |
| Body Material | Stainless Steel |
| Operating Medium | Compressed Air |
| Maximum Operating Pressure | 1.0 MPa |
| Maximum Piston Speed | 500 mm/s |
| Operating Temperature | -10°C to +70°C |
| Magnet | Built-in Magnet |
| Standards | ISO 6432 / ISO 21287 |
| Application | Industrial Automation |
| Usage | Linear Motion Control |
| Weight | Approx. 710 g |
