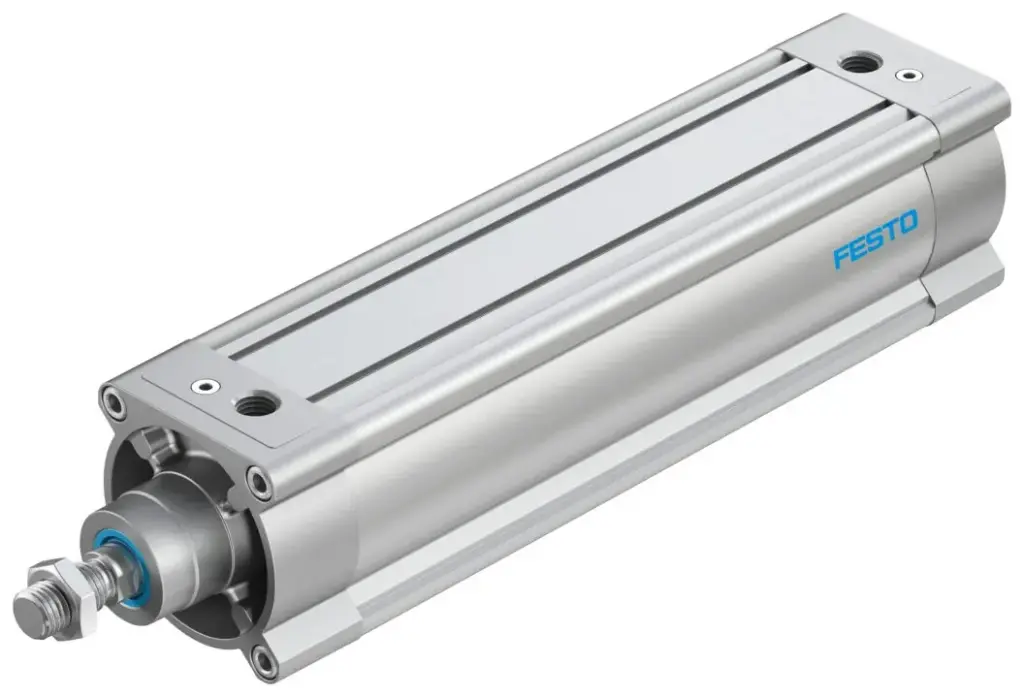

The FESTO DSBC-100-320-PPVA-N3 is a high-performance ISO 15552 standards-based pneumatic cylinder engineered for reliable linear motion and industrial automation systems. Featuring a 100 mm piston diameter and 320 mm stroke length, the cylinder delivers high actuation force and smooth double-acting operation for demanding industrial applications. The PPVA configuration provides adjustable pneumatic cushioning at both ends, reducing impact loads and extending service life. Constructed with an anodized aluminum profile barrel, high-alloy steel piston rod, and integrated sensor slots for proximity switches, the cylinder offers excellent durability, positioning capability, and maintenance efficiency. It is widely used in manufacturing machinery, conveyors, material handling systems, packaging equipment, assembly lines, and automated production environments requiring powerful and precise pneumatic motion control.
Product Specifications
| Specification | Details |
| Brand | FESTO |
| Model | DSBC-100-320-PPVA-N3 |
| Part Number | 1384813 |
| Product Type | Pneumatic Cylinder |
| Cylinder Type | ISO Standard Profile Cylinder |
| Series | DSBC |
| Standard | ISO 15552 |
| Operation Type | Double Acting |
| Bore Diameter | 100 mm |
| Stroke Length | 320 mm |
| Piston Rod Type | Single-Ended |
| Piston Rod Thread | M20 × 1.5 |
| Cushioning Type | PPV – Adjustable Pneumatic Cushioning Both Ends |
| Position Detection | For Proximity Sensors |
| Mounting Position | Any |
| Operating Pressure | 0.4 – 12 Bar |
| Operating Medium | Compressed Air |
| Pneumatic Connection | G1/2 |
| Theoretical Force @ 6 Bar (Advance) | 4712 N |
| Theoretical Force @ 6 Bar (Return) | 4418 N |
| Ambient Temperature | -20°C to +80°C |
| Corrosion Resistance Class | CRC 2 |
| Cylinder Barrel Material | Smooth Anodized Aluminum Alloy |
| Piston Rod Material | High Alloy Steel |
| Seal Material | TPE-U (PU) |
| Weight | Approx. 6.9 kg |
| RoHS Compliance | Yes |
| Application | Industrial Automation & Linear Motion |
| Suitable For | Packaging Machines, Conveyors, Assembly Systems |
| Country of Brand Origin | Germany |
