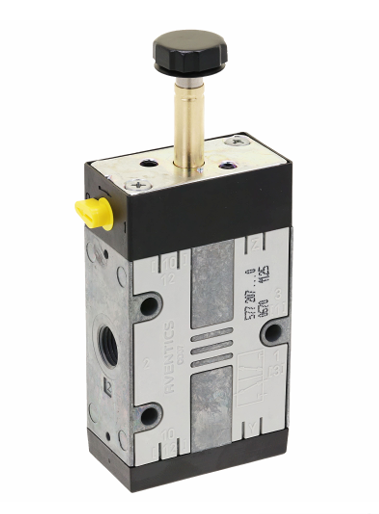

5772075302 AVENTICS

5772075302 AVENTICS

https://www.mventus.com/web/image/product.template/10894/image_1920?unique=b7e52a4
(0 review)
The AVENTICS CD07 (5772075302) is a 3/2-way single solenoid spool valve designed for industrial use in harsh environments. Built with a durable die-cast zinc housing, it offers reliable performance in extreme temperatures down to -25 °C. With a flow rate of 1400 l/min and G1/4 connections, it is ideal for demanding pneumatic applications.
Read Less

575.00 SR 575.0 SAR 575.00 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU: PN-03-002
Product Code: 5772075302

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

The AVENTICS CD07 (5772075302) is a 3/2-way single solenoid spool valve designed for industrial use in harsh environments. Built with a durable die-cast zinc housing, it offers reliable performance in extreme temperatures down to -25 °C. With a flow rate of 1400 l/min and G1/4 connections, it is ideal for demanding pneumatic applications.

Specification Value
Product AVENTICS 3/2 Directional Valve, Series CD07
Part Number 5772075302
Valve Type Spool valve, positive overlapping
Operation Single solenoid, spring return
Function 3/2 NC/NO
Connection Type G 1/4 (inlet, outlet, exhaust)
Nominal Flow 1400 l/min
Working Pressure 3 – 10 bar
Pilot Control Internal
Duty Cycle 1
Temperature Range -25 °C … +50 °C (cold-resistant)
Medium Filtered compressed air (oil content 0–1 mg/m³, particle size ≤ 50 µm)
Housing Material Die-cast zinc
Seal Material NBR (Acrylonitrile butadiene rubber)
Mounting Base plate
Certificates ATEX optional
