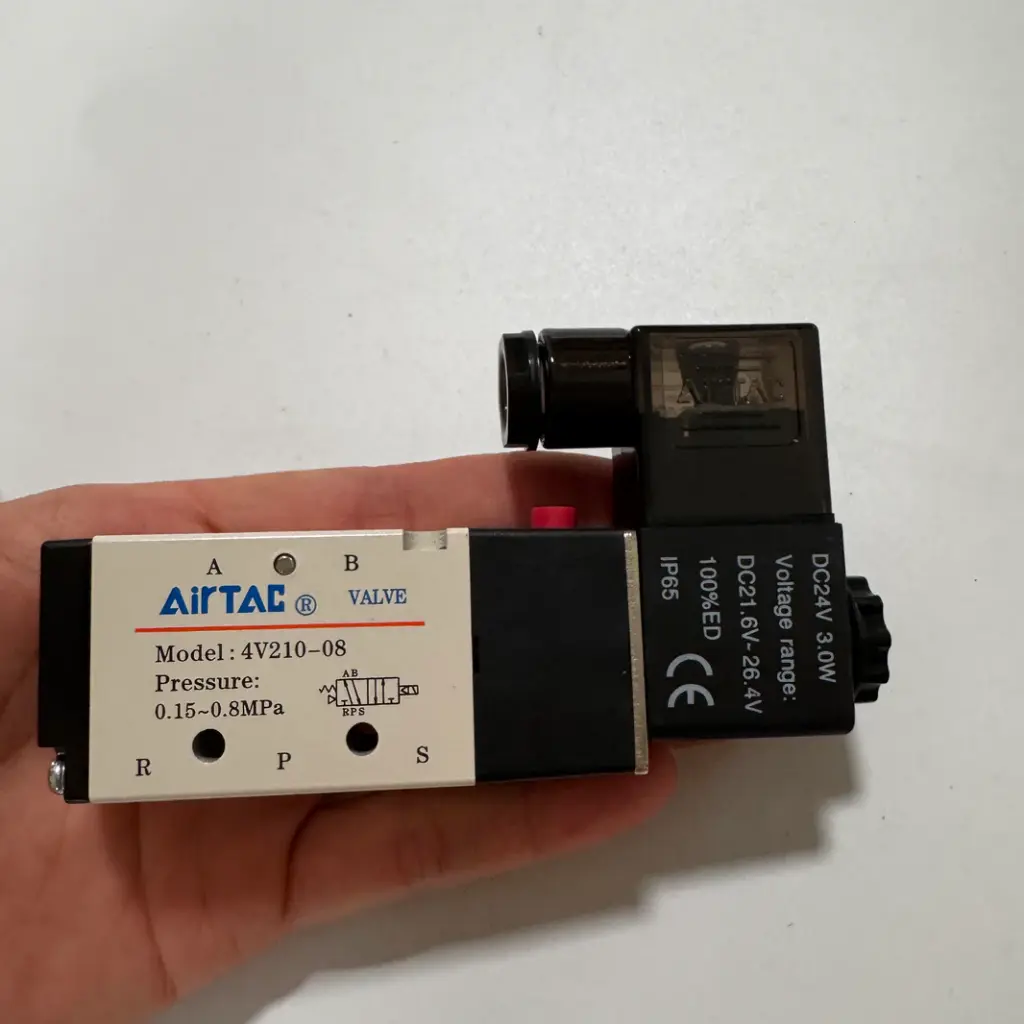

The Airtac 4V210-08B pneumatic solenoid valve is a compact and reliable directional control valve engineered for industrial compressed air systems. Featuring a 5-port, 2-position configuration with single-solenoid spring return operation, the valve is designed to control the movement of double-acting pneumatic cylinders and actuators. The valve uses an internal pilot structure with sliding spool technology that provides fast response, low starting pressure, reliable sealing, and long service life. Its aluminum alloy body construction ensures durability while maintaining lightweight performance. The 24V DC coil enables integration into PLC-controlled automation systems, machine tools, packaging equipment, conveyors, robotics, and manufacturing machinery. The valve supports manifold mounting for compact system installation and is widely used as a cost-effective alternative to similar SMC pneumatic valve series.
Product Specifications
| Specification | Details |
| Brand | Airtac |
| Model | 4V210-08B |
| Product Type | Pneumatic Solenoid Valve |
| Valve Type | 5/2 Way Directional Control Valve |
| Operation Type | Single Solenoid, Spring Return |
| Series | 4V200 Series |
| Coil Voltage | 24V DC |
| Control Mode | Electrically Operated |
| Pilot Type | Internal Pilot |
| Number of Ports | 5 Port |
| Number of Positions | 2 Position |
| Port Size | 1/4" PT |
| Exhaust Port Size | 1/8" |
| Working Medium | Filtered Compressed Air |
| Operating Pressure Range | 0.15 – 0.8 MPa |
| Maximum Pressure | 1.0 MPa |
| Response Time | ≤ 0.05 sec |
| Power Consumption | Approx. 4.8W |
| Protection Class | IP65 |
| Body Material | Aluminum Alloy |
| Seal Material | NBR |
| Operating Temperature | -5°C to +50°C |
| Mounting Type | Base / Manifold Mount |
| Application | Pneumatic Automation Control |
| Suitable For | Cylinders, Robotics, Packaging Machines, Conveyors |
| Country of Brand Origin | Taiwan |
