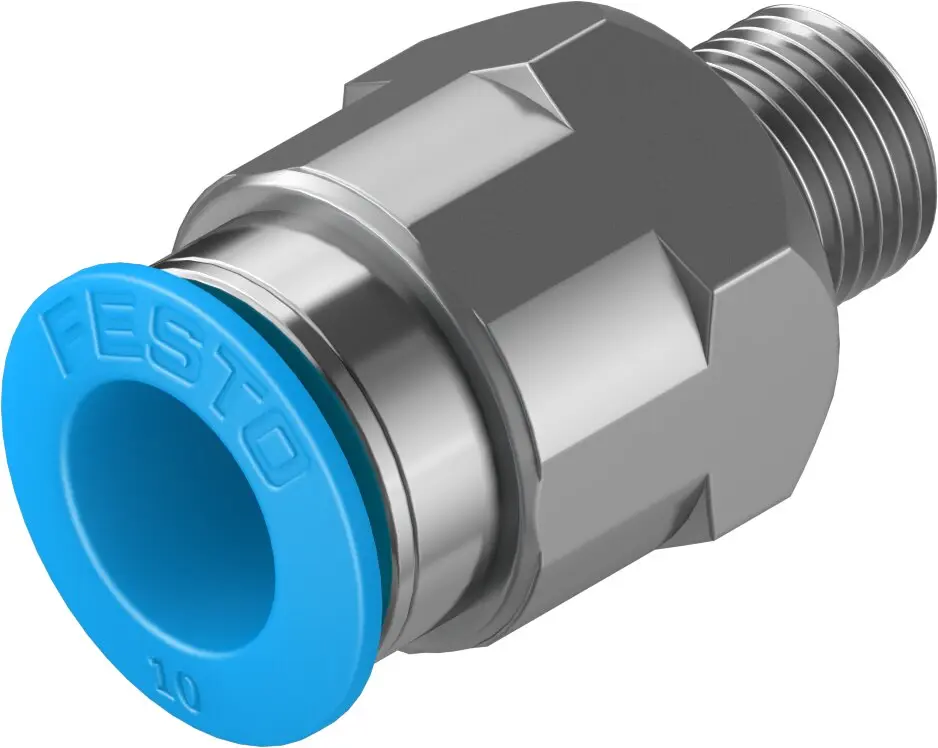

The QS-1/8-10 Straight Push-In Pneumatic Fitting from Festo is a compact and reliable connector designed for fast installation and secure tube retention in pneumatic systems. Engineered for industrial automation and compressed air distribution networks, it enables the connection of 10 mm outside diameter tubing to R1/8 male threaded ports with minimal installation effort.
Featuring Festo's proven push-in technology, the fitting allows quick tube insertion and easy removal while maintaining a leak-resistant seal. Its durable nickel-plated metal body offers excellent corrosion resistance and long service life in demanding industrial environments. The compact design makes it suitable for installations where space is limited, while its wide operating pressure and temperature range ensure dependable performance across various pneumatic applications.
Ideal for machinery, manufacturing equipment, automation systems, pneumatic control panels, and compressed air networks, the QS-1/8-10 fitting delivers reliable performance, easy maintenance, and efficient airflow management.
Technical Specifications
-
Product Type: Straight Push-In Pneumatic Fitting
-
Manufacturer: Festo
-
Manufacturer Code: QS-1/8-10
-
Pneumatic Connection Port 1: R1/8 Male Thread
-
Pneumatic Connection Port 2: 10 mm Outside Diameter Tube
-
Nominal Size: 6 mm
-
Operating Pressure Range: -0.95 to 14 bar
-
Ambient Temperature Range: -10°C to +80°C
-
Installation Type: Threaded / Push-In Connection
-
Body Material: Nickel-Plated Metal
-
Application: Compressed Air and Pneumatic Systems
-
Mounting Position: Any
-
Connection Technology: Push-In
