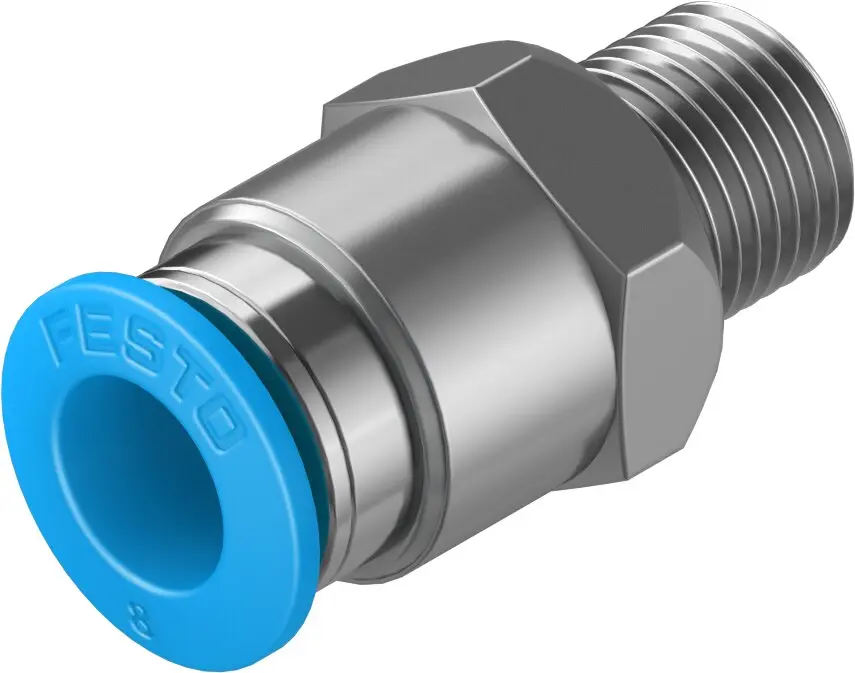

The QS-1/8-8 Straight Push-In Pneumatic Fitting from Festo is engineered to provide fast, reliable, and maintenance-friendly tube connections in pneumatic systems. Featuring a robust male R1/8 threaded connection and an 8 mm push-in tube connection, this fitting enables quick installation without the need for specialized tools.
Manufactured from high-quality materials with a corrosion-resistant metal body, the fitting delivers long service life and dependable performance in demanding industrial environments. The advanced push-in mechanism ensures secure tube retention while allowing easy tube insertion and removal during maintenance or system modifications.
Designed for use in compressed air distribution networks, automation equipment, pneumatic control panels, machinery, and process control systems, the QS-1/8-8 offers excellent sealing performance, reduced installation time, and reliable operation across a wide range of pressures and temperatures. Its compact design makes it suitable for installations where space is limited while maintaining optimal airflow characteristics.
Technical Specifications
-
Product Type: Straight Push-In Pneumatic Fitting
-
Manufacturer: Festo
-
Manufacturer Code: QS-1/8-8
-
Pneumatic Connection Port 1: R1/8 Male Thread
-
Pneumatic Connection Port 2: 8 mm Outside Diameter Tube
-
Nominal Size: 6 mm
-
Operating Pressure Range: -0.95 to 14 bar
-
Ambient Temperature Range: -10°C to +80°C
-
Connection Technology: Push-In
-
Mounting Type: Threaded
-
Installation Position: Any
-
Application: Compressed Air and Pneumatic Systems
-
Design: Straight Connector
