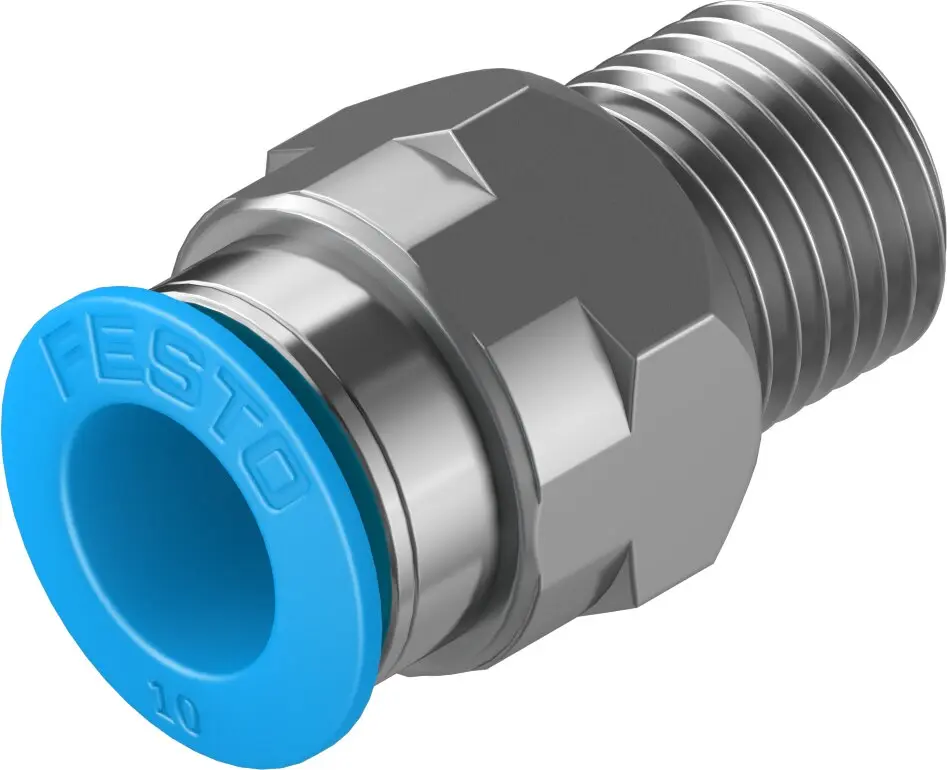

The QS-1/4-10 Straight Push-In Pneumatic Fitting from Festo is designed to provide secure and efficient connections in pneumatic systems. Featuring an R1/4 male threaded connection and a push-in port for 10 mm outside diameter tubing, this fitting enables quick installation and dependable operation in compressed air applications.
Built with Festo's advanced push-in connection technology, the fitting allows fast tube insertion and removal while maintaining a secure seal. Its durable metal construction ensures long service life, resistance to industrial operating conditions, and reliable performance in demanding automation environments.
The compact straight design simplifies integration into pneumatic control panels, manufacturing equipment, machinery, and compressed air distribution systems. Suitable for a wide range of industrial applications, the QS-1/4-10 helps reduce installation time, minimize maintenance effort, and maintain efficient airflow throughout the system.
Technical Specifications
-
Product Type: Straight Push-In Pneumatic Fitting
-
Manufacturer: Festo
-
Manufacturer Code: QS-1/4-10
-
Pneumatic Connection Port 1: R1/4 Male Thread
-
Pneumatic Connection Port 2: 10 mm Outside Diameter Tube
-
Nominal Size: 8.5 mm
-
Operating Pressure Range: -0.95 to 14 bar
-
Ambient Temperature Range: -10°C to +80°C
-
Connection Technology: Push-In
-
Mounting Type: Male Threaded
-
Design: Straight Connector
-
Application: Compressed Air and Pneumatic Systems
