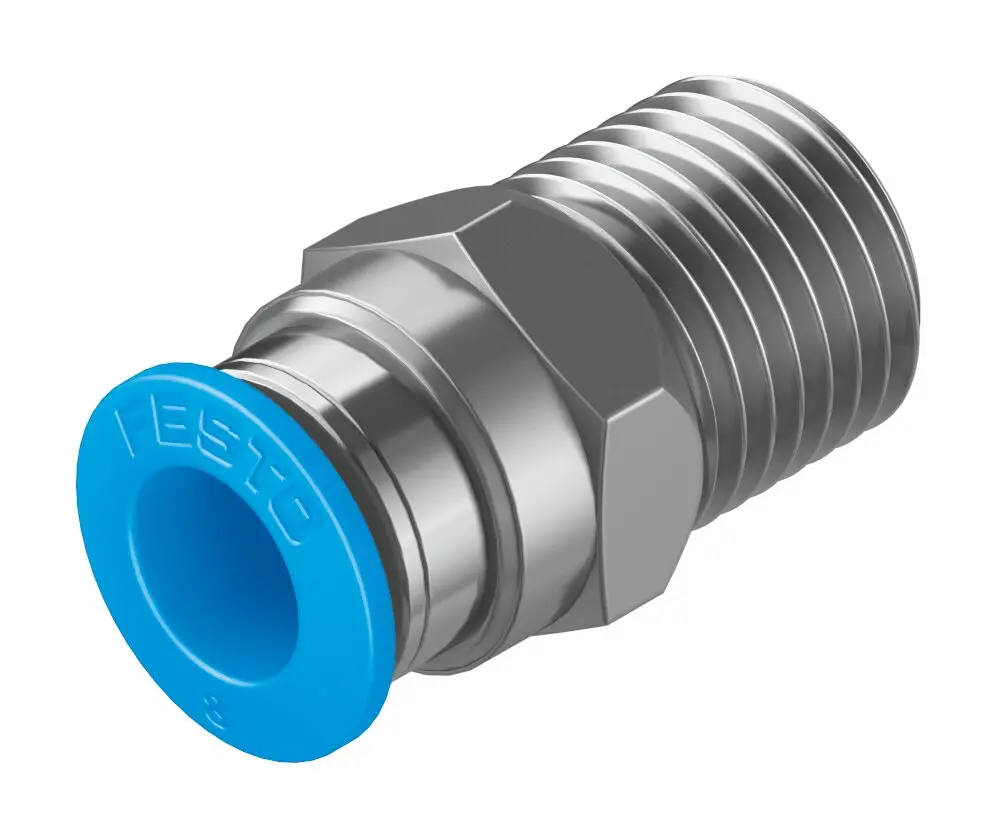

The QS-1/4-8 Straight Push-In Pneumatic Fitting from Festo is engineered for reliable pneumatic connections in industrial automation and compressed air applications. Featuring an R1/4 male threaded connection and an 8 mm push-in tube port, this fitting enables quick and secure assembly without the need for special tools.
Designed with Festo's proven push-in technology, the fitting ensures strong tube retention, excellent sealing performance, and simplified maintenance. The robust metal body provides durability and resistance to demanding industrial environments, while the compact straight design allows installation in applications where space is limited.
Suitable for pneumatic control systems, manufacturing equipment, automation machinery, and compressed air distribution networks, the QS-1/4-8 offers dependable performance across a wide operating pressure range. Its efficient design helps reduce installation time and supports long-term system reliability.
Technical Specifications
-
Product Type: Straight Push-In Pneumatic Fitting
-
Manufacturer: Festo
-
Manufacturer Code: QS-1/4-8
-
Pneumatic Connection Port 1: R1/4 Male Thread
-
Pneumatic Connection Port 2: 8 mm Outside Diameter Tube
-
Nominal Size: 7 mm
-
Operating Pressure Range: -0.95 to 14 bar
-
Ambient Temperature Range: -10°C to +80°C
-
Connection Technology: Push-In
-
Mounting Type: Male Threaded
-
Design: Straight Connector
-
Application: Pneumatic and Compressed Air Systems
