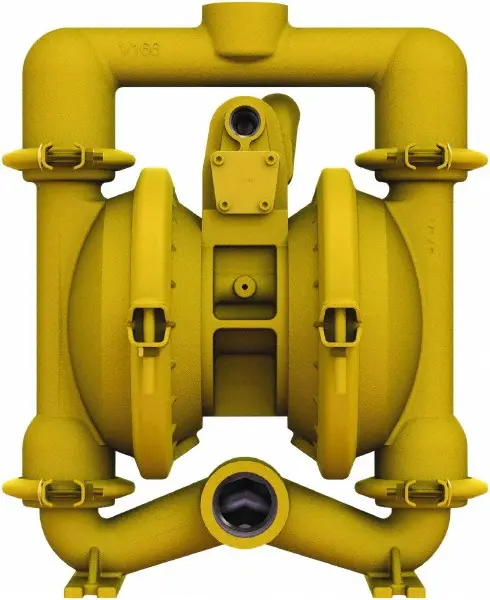

Versamatic E4AA5T5A0-ATEX Aluminium 1½" Pump

Versamatic E4AA5T5A0-ATEX Aluminium 1½" Pump

https://www.mventus.com/web/image/product.template/11370/image_1920?unique=15916de
(0 review)
The wetted pump casings are aluminium with PTFE internals – Hazardous Area – BSP connections. Versamatic’s 1½” (38mm) air-operated double-diaphragm (AODD) pump uses a patented air valve system to deliver consistent on/off reliability while maintaining superior air efficiency. Available with several extended-life diaphragm styles to choose from, this portable AODD pump delivers excellent flow rates. The Versamatic 1½” pump is the performance leader in flow rate at 123 gpm (465 lpm), displacement per cycle and dry suction lift. Additionally, this pump: Makes maintenance easy with a removable air valve sleeve and modular pilot spool design Offers leak-free bolted design for confidently and safely transferring acids and caustics in your application
Read Less

8,430.40 SR 8430.4 SAR 8,430.40 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU: PU-03-001
Product Code: E4AA5T5A0-ATEX

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

The wetted pump casings are aluminium with PTFE internals – Hazardous Area – BSP connections. Versamatic’s 1½” (38mm) air-operated double-diaphragm (AODD) pump uses a patented air valve system to deliver consistent on/off reliability while maintaining superior air efficiency. Available with several extended-life diaphragm styles to choose from, this portable AODD pump delivers excellent flow rates. The Versamatic 1½” pump is the performance leader in flow rate at 123 gpm (465 lpm), displacement per cycle and dry suction lift. Additionally, this pump: Makes maintenance easy with a removable air valve sleeve and modular pilot spool design Offers leak-free bolted design for confidently and safely transferring acids and caustics in your application

Specification Value
Flow Rate Adjustable to 0–71 gpm (268 lpm)
Suction Port Size 1 1/2” NPT
Discharge Port Size 1 1/4” NPT
Air Inlet 1/2” NPT
Air Exhaust 3/4” NPT
Suction Lift (Dry) 19’ (5.8 m)
Suction Lift (Wet) 31’ (9.4 m)
Max Solid Size (Diameter) 3/16” (4.76 mm)
Max Noise Level 101 dB(A)
Shipping Weight (Aluminum) 55 lbs (25 kg)
Shipping Weight (Cast Iron) 95 lbs (43 kg)
Shipping Weight (Stainless) 92 lbs (42 kg)
