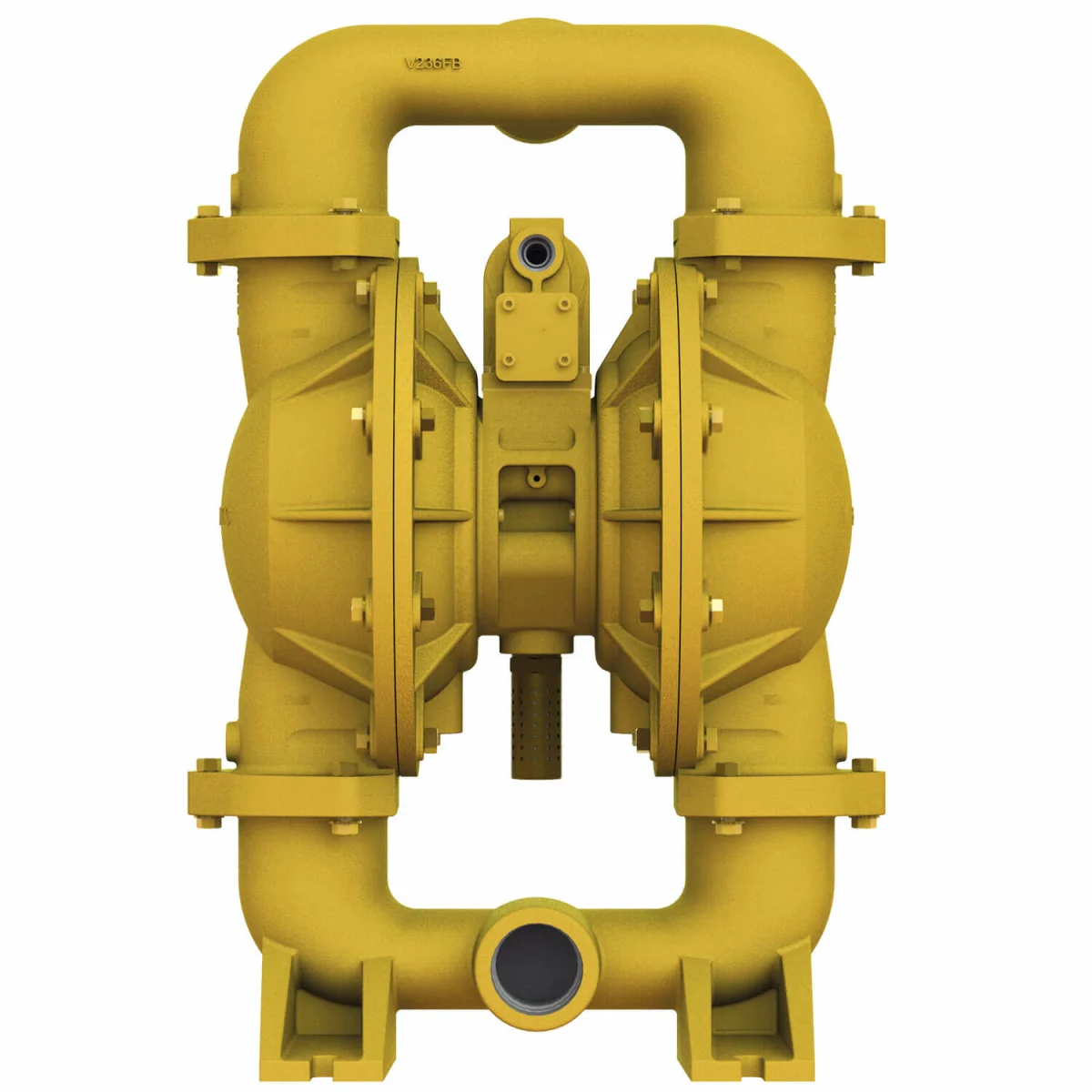

Versamatic E2AA5T559C-ATEX Aluminium 2" Pump

Versamatic E2AA5T559C-ATEX Aluminium 2" Pump

https://www.mventus.com/web/image/product.template/11371/image_1920?unique=d5ac607
The E2AA5T559C-ATEX is a self-priming 2-inch air-operated diaphragm pump designed for reliable handling of liquids, including those with solids up to 11.1 mm. With a maximum flow rate of 617 L/min and delivery pressure up to 8.6 bar, it is ideal for demanding industrial applications. Key Features: Connection size: 2 inch Flow rate: 617 L/min Max pressure: 8.6 bar Explosion protection: ATEX certified Housing: Aluminum Diaphragm: PTFE (2-pc) Durable and efficient, this pump is well-suited for safe transfer of aggressive or hazardous media in chemical, industrial, and process applications
Read More

29,095.00 SR 29095.0 SAR 29,095.00 SR Tax Excluded

Not Available For Sale


  • Brands

This combination does not exist.

Brands VERSAMATIC
Contact Us
SKU: PU-03-009
Product Code: E2AA5T559C-ATEX



The E2AA5T559C-ATEX is a self-priming 2-inch air-operated diaphragm pump designed for reliable handling of liquids, including those with solids up to 11.1 mm. With a maximum flow rate of 617 L/min and delivery pressure up to 8.6 bar, it is ideal for demanding industrial applications. Key Features: Connection size: 2 inch Flow rate: 617 L/min Max pressure: 8.6 bar Explosion protection: ATEX certified Housing: Aluminum Diaphragm: PTFE (2-pc) Durable and efficient, this pump is well-suited for safe transfer of aggressive or hazardous media in chemical, industrial, and process applications

Specification Value
Housing Material (Wetted) Aluminum
Diaphragm Material Teflon® - PTFE
Maximum Delivery Pressure 8.6 bar
Maximum Operating Temperature 104 °C
Minimum Operating Temperature -37 °C
Housing Design Bolted
Housing Material (Non-Wetted) Aluminum
Air Connection Output 1/2 Inch
Air Connection Input 1 Inch
Suction Lift (Wet) 9.8 m
Suction Lift (Dry) 5.5 m
Connection Size 2 Inch
Port Size (Pressure Side) 2 Inch
Port Size (Suction Side) 2 Inch
Explosion Protection (ATEX) With Explosion protection (ATEX)
FDA Compliant Without FDA compliance
Displacement per Stroke 1.9 litres
Model Elima-Matic
Connection Type NPT
Check Valve Material Teflon® - PTFE
Seats Material Teflon® - PTFE
Maximum Solids Size 11.1 mm
Flow Rate (Nominal) 595 L/min
Flow Rate (Range) 465 – 727 L/min
Shipping Weight 36.70 kg
Item Weight 36.70 kg
Dimensions (L × W × H) 33.40 × 45.00 × 67.20 cm
