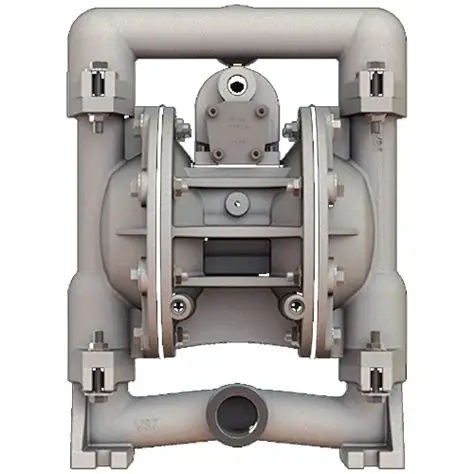

Versamatic E1SP5T559C Stanless Steel AODD 1" Pump

Versamatic E1SP5T559C Stanless Steel AODD 1" Pump

https://www.mventus.com/web/image/product.template/11372/image_1920?unique=14fe674
(0 review)
The E1-Series 1" Metallic Bolted Pump delivers 36 GPM (136 LPM) flow with excellent chemical resistance and long-term reliability. Its leak-free bolted design ensures secure sealing, while the unbalanced air valve provides reliable on/off operation and easy maintenance. Key Features: Max flow rate: 36 GPM (136 LPM) Max discharge pressure: 100 psi (6.9 bar) Max temperature: 220°F (105°C) Air consumption: 35 SCFM (59 CMPH) Wetted parts: Stainless steel Diaphragm, seat & ball: PTFE Port size: 1" (25.4 mm) Compact and durable, it is ideal for pumping thin liquids in industrial and chemical applications.
Read Less

5,335.00 SR 5335.0 SAR 5,335.00 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU: PU-03-010
Product Code: E1SP5T559C

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

The E1-Series 1" Metallic Bolted Pump delivers 36 GPM (136 LPM) flow with excellent chemical resistance and long-term reliability. Its leak-free bolted design ensures secure sealing, while the unbalanced air valve provides reliable on/off operation and easy maintenance. Key Features: Max flow rate: 36 GPM (136 LPM) Max discharge pressure: 100 psi (6.9 bar) Max temperature: 220°F (105°C) Air consumption: 35 SCFM (59 CMPH) Wetted parts: Stainless steel Diaphragm, seat & ball: PTFE Port size: 1" (25.4 mm) Compact and durable, it is ideal for pumping thin liquids in industrial and chemical applications.

Specification Value
Model Versa-Matic E1SP5T559C
Maximum Flow Rate 36 GPM (136 LPM)
Maximum Discharge Pressure 100 psi (6.9 bar)
Maximum Air Inlet Pressure 100 psi (6.9 bar)
Maximum Air Consumption 35 CFM (59 CMH)
Maximum Temperature 220 °F (105 °C)
Wetted Material Stainless Steel
Seat Material PTFE
Ball Material PTFE
Diaphragm Material PTFE
Non-Wetted Material Polypropylene
Port Size 1 inch (25.4 mm)
Dimensions (W × D × H) 10.72" × 9.33" × 14.54" (272 × 237 × 370 mm)
