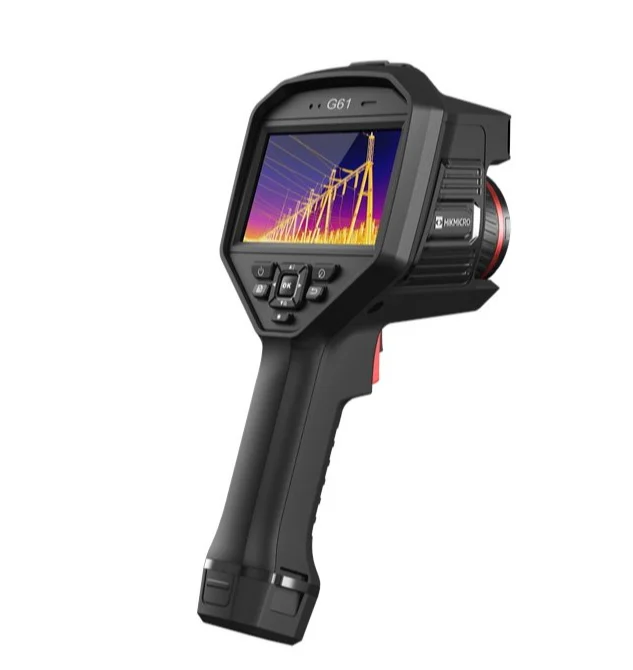

The HIKMICRO G61 Handheld Thermal Camera is a high-performance industrial thermography instrument designed for predictive maintenance, electrical inspections, mechanical diagnostics, building inspections, oil & gas applications, and utility maintenance. Equipped with a high-resolution 640 × 480 VOx thermal detector and an 8 MP visual camera, the device delivers precise thermal imaging and accurate temperature measurements up to 650°C. The 4.3-inch 800 × 480 touchscreen display provides clear visualization, while advanced features such as laser-assisted autofocus, GPS tagging, digital zoom, Wi-Fi connectivity, Bluetooth, image fusion, picture-in-picture mode, and radiometric recording enhance inspection efficiency. The G61 supports detailed temperature analysis with multiple measurement tools including spots, lines, areas, and automatic hot/cold point detection, making it suitable for professional industrial thermography applications.
Product Specifications
| Specification | Details |
| Brand | HIKMICRO |
| Model | G61 |
| Product Type | Handheld Thermal Imaging Camera |
| Thermal Resolution | 640 × 480 Pixels |
| SuperIR Resolution | 1280 × 960 Pixels |
| Visual Camera Resolution | 8 MP (3264 × 2448) |
| Display Size | 4.3 Inch LCD Touch Screen |
| Display Resolution | 800 × 480 Pixels |
| Temperature Range | -20°C to +650°C |
| Thermal Sensitivity (NETD) | < 35 mK |
| Accuracy | ±2°C or ±2% |
| Image Frequency | 50 Hz |
| Detector Type | VOx Uncooled Focal Plane Array |
| Spectral Range | 7.5 – 14 μm |
| Focus Modes | Manual, Auto, Continuous AF, Laser AF, Touch AF |
| Digital Zoom | 1x – 8x Continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Fusion, Red Hot |
| Image Modes | Thermal, Optical, Fusion, PIP, Blending |
| Storage Capacity | 64 GB MicroSD |
| Video Recording | MP4 & Radiometric Video |
| Connectivity | Wi-Fi, Bluetooth 4.2, USB Type-C, HDMI |
| GPS | Yes |
| Compass | Yes |
| Laser Distance Meter | Yes |
| Protection Rating | IP54 |
| Drop Test Rating | 2 m |
| Battery Type | Rechargeable Li-Ion |
| Operating Time | Up to 4 Hours per Battery |
| Application | Predictive Maintenance & Industrial Inspection |
| Suitable For | Electrical Panels, Motors, Bearings, Utilities, HVAC |
| Country of Brand Origin | China |
