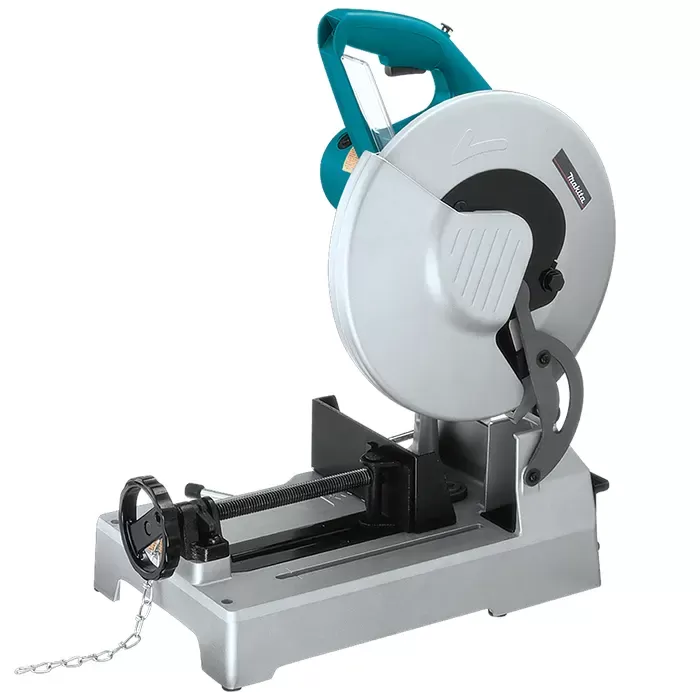

Chop Saw machine, Blade 12 inch, Cutting Depth 115mm, 1750W, 1300rpm, 19.3kg

Chop Saw machine, Blade 12 inch, Cutting Depth 115mm, 1750W, 1300rpm, 19.3kg

https://www.mventus.com/web/image/product.template/5786/image_1920?unique=8a762d1
(0 review)
Makita Chop Saw machine LC1230 is a Metal Cutting Saw 305mm (12 inch) powered by a 1,750W motor. Features faster cutting in multiple types of materials. A D-shape handle for easy gripping and comfort while working. The Chop Saw machine has a Quick-release vise that secures material retention and fast repeated cut-offs. "Tool-less" guide plate adjusts 0-45° for quick and easy miter cutting for more convenience. In addition, the Double insulation system reduces the amount of dust produced during cutting. Powerful Features: Double insulation: Double or reinforced insulation is another method of protection against electric shock, consisting of an extra layer of supplementary insulation over the basic insulation, or the live parts. Double insulation devices protect the user through two independent isolation systems. These systems protect electric motor components from the outer motor housing and tool holding areas. Makita Chop Saw machine Features: Fast cuts in light pipe, angle iron, tubing, conduit, and channels. Just release the lever to adjust the cutting angle no tools are required. Quick release vise for secure material retention and fast, repeated cut-offs Lock off button prevents accidental start-up Shaft lock for easy blade changes with just one wrench Powerful 1,750W motor for the most demanding applications D-shape handle for user comfort Socket wrench stores on base for convenient blade changes Large cast aluminum base for stability Externally accessible brushes for greater serviceability Maximum cutting depth of 115 mm (4-1/2 inch) with a carbide-tipped blade Specification: Continuous rating Input / 1750W Blade diameter / 305mm Capacity / at 0 degrees: 115mm (4-1/2") at 0 degrees: 75mm x 150mm (2-15/16" x 5-7/8") at 45 degrees: 90mm (3-1/2") at 45 degrees: 85 x 85mm (3-5/16" x 3-5/16") No load speed / 1,300rpm Dimensions (L x W x H) / 516mm x 306mm x 603mm (20-1/4" x 12" x 23-3/4") Net weight / 19.3kg (42.5lbs) Power supply cord / 2.5m (8.2ft)
Read Less

2,102.10 SR 2102.1 SAR 2,102.10 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Portable Cut-off
Contact Us
SKU: TO-02-023
Product Code: LC1230

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Makita Chop Saw machine LC1230 is a Metal Cutting Saw 305mm (12 inch) powered by a 1,750W motor. Features faster cutting in multiple types of materials. A D-shape handle for easy gripping and comfort while working. The Chop Saw machine has a Quick-release vise that secures material retention and fast repeated cut-offs. "Tool-less" guide plate adjusts 0-45° for quick and easy miter cutting for more convenience. In addition, the Double insulation system reduces the amount of dust produced during cutting. Powerful Features: Double insulation: Double or reinforced insulation is another method of protection against electric shock, consisting of an extra layer of supplementary insulation over the basic insulation, or the live parts. Double insulation devices protect the user through two independent isolation systems. These systems protect electric motor components from the outer motor housing and tool holding areas. Makita Chop Saw machine Features: Fast cuts in light pipe, angle iron, tubing, conduit, and channels. Just release the lever to adjust the cutting angle no tools are required. Quick release vise for secure material retention and fast, repeated cut-offs Lock off button prevents accidental start-up Shaft lock for easy blade changes with just one wrench Powerful 1,750W motor for the most demanding applications D-shape handle for user comfort Socket wrench stores on base for convenient blade changes Large cast aluminum base for stability Externally accessible brushes for greater serviceability Maximum cutting depth of 115 mm (4-1/2 inch) with a carbide-tipped blade Specification: Continuous rating Input / 1750W Blade diameter / 305mm Capacity / at 0 degrees: 115mm (4-1/2") at 0 degrees: 75mm x 150mm (2-15/16" x 5-7/8") at 45 degrees: 90mm (3-1/2") at 45 degrees: 85 x 85mm (3-5/16" x 3-5/16") No load speed / 1,300rpm Dimensions (L x W x H) / 516mm x 306mm x 603mm (20-1/4" x 12" x 23-3/4") Net weight / 19.3kg (42.5lbs) Power supply cord / 2.5m (8.2ft)

Specification Value
MAXIMUM OUTPUT POWER 1750 W
POWER SUPPLY CORD 2,5 m
SOUND POWER LEVEL (LWA) 108 dB(A)
SOUND PRESSURE LEVEL (LPA) 98 dB(A)
NOISE UNCERTAINTY (K FACTOR) 3 dB(A)
VIBRATION LEVEL (3 AXES) 4,5 m/s²
VIBRATION UNCERTAINTY (K FACTOR) 1,5 m/s²
WEIGHT WITHOUT CABLE (EPTA-PROCEDURE 01/2003) 19,3 kg
EAN 88381029506
NO LOAD SPEED 1300 min⁻¹
BORE SIZE (ARBOR DIAMETER) 25,4 mm
MAX. CUTTING CAPACITY IN STEEL PIPE 115 mm
GRINDING DISC DIAMETER 305 mm
CAPACITY 90° 150 x 75 / 100 x 100 mm
CAPACIITY 45° 85 x 85 mm
