DN 80 R487 80W 33 2A 1 WL 0 AHL11 W

DN 80 R487 80W 33 2A 1 WL 0 AHL11 W

https://www.mventus.com/web/image/product.template/7697/image_1920?unique=1a681d6
(0 review)

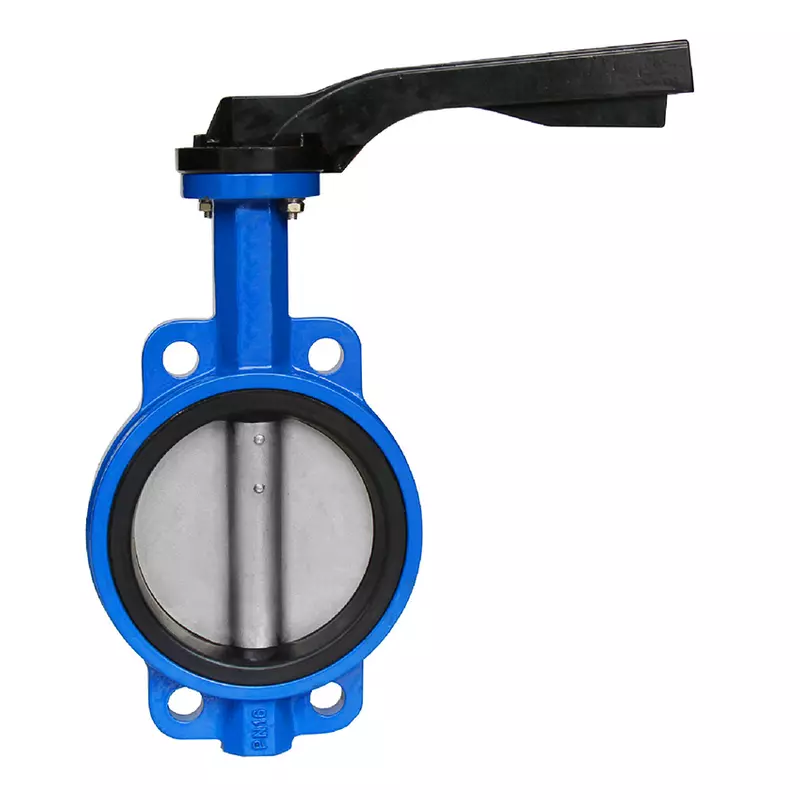

The Butterfly Valve Model R487 DN 80 is designed for reliable shut-off and flow control in pipeline systems. Built with a robust EN-GJS-400-15 (GGG-40) epoxy-coated body and a disc made of 1.4408 investment casting, it ensures durability and resistance against corrosion. The 1.4021 stainless steel shaft and EPDM seat provide tight sealing and long service life. Key Features: Nominal Size: DN 80 Operating Pressure: 16 Bar Body Configuration: Intermediate flange (Wafer), FTF EN 558 Series 20 Connection: PN 16 / Flange EN 1092 Seat: EPDM (loose) Control: Manual operation Reference Code: R487 80W 33 2A 1 WL 0 AHL11 W This valve is ideal for industrial and water applications requiring high reliability and easy manual operation.
Read Less

1,200.00 SR 1200.0 SAR 1,200.00 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU: VA-01-001
Product Code: R487

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

The Butterfly Valve Model R487 DN 80 is designed for reliable shut-off and flow control in pipeline systems. Built with a robust EN-GJS-400-15 (GGG-40) epoxy-coated body and a disc made of 1.4408 investment casting, it ensures durability and resistance against corrosion. The 1.4021 stainless steel shaft and EPDM seat provide tight sealing and long service life. Key Features: Nominal Size: DN 80 Operating Pressure: 16 Bar Body Configuration: Intermediate flange (Wafer), FTF EN 558 Series 20 Connection: PN 16 / Flange EN 1092 Seat: EPDM (loose) Control: Manual operation Reference Code: R487 80W 33 2A 1 WL 0 AHL11 W This valve is ideal for industrial and water applications requiring high reliability and easy manual operation.

Specification Value
Type of Valve Butterfly Valve Model R487
Nominal Size DN 80
Operating Pressure 16 Bar
Body Configuration Intermediate flange version (Wafer), length FTF EN 558 series 20
Connection Type PN 16 / flange EN 1092, face-to-face dimension FTF EN 558 series 20
Valve Body Material EN-GJS-400-15 (GGG-40), epoxy coated 250 μm
Disc Material 1.4408, investment casting
Shaft Material Shaft 1.4021
Seat EPDM (Seat Loose)
Control Function Manually Operated
Reference R487 80W 33 2A 1 WL 0 AHL11 W
