DN 100 R487 100W 33 2A 1 WL 0 AHL14 W

DN 100 R487 100W 33 2A 1 WL 0 AHL14 W

https://www.mventus.com/web/image/product.template/7698/image_1920?unique=1a681d6
(0 review)

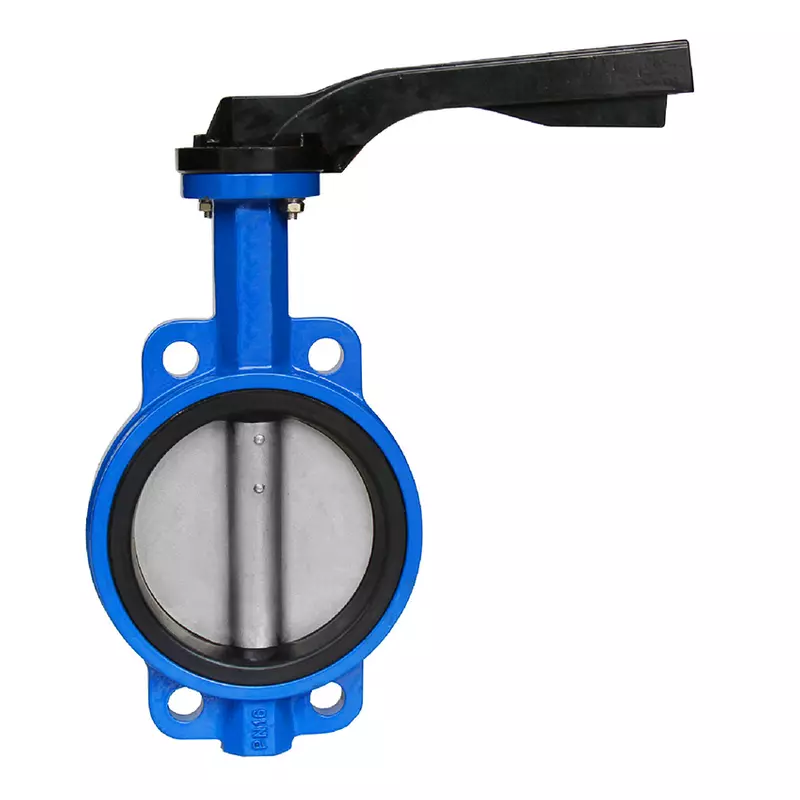

The Butterfly Valve Model R487 DN 100 offers the same reliable performance as the DN 80 variant but with a larger flow capacity. Its EN-GJS-400-15 epoxy-coated body combined with a 1.4408 stainless steel disc ensures strength and resistance to wear, while the 1.4021 shaft and EPDM seat deliver secure sealing. Key Features: Nominal Size: DN 100 Operating Pressure: 16 Bar Body Configuration: Intermediate flange (Wafer), FTF EN 558 Series 20 Connection: PN 16 / Flange EN 1092 Seat: EPDM (loose) Control: Manual operation Reference Code: R487 100W 33 2A 1 WL 0 AHL14 W This valve is suitable for applications demanding durability, corrosion resistance, and consistent manual control across larger pipeline sizes.
Read Less

1,650.00 SR 1650.0 SAR 1,650.00 SR Tax Excluded

Not Available For Sale


This combination does not exist.

Contact Us
SKU: VA-01-002
Product Code: R487

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

The Butterfly Valve Model R487 DN 100 offers the same reliable performance as the DN 80 variant but with a larger flow capacity. Its EN-GJS-400-15 epoxy-coated body combined with a 1.4408 stainless steel disc ensures strength and resistance to wear, while the 1.4021 shaft and EPDM seat deliver secure sealing. Key Features: Nominal Size: DN 100 Operating Pressure: 16 Bar Body Configuration: Intermediate flange (Wafer), FTF EN 558 Series 20 Connection: PN 16 / Flange EN 1092 Seat: EPDM (loose) Control: Manual operation Reference Code: R487 100W 33 2A 1 WL 0 AHL14 W This valve is suitable for applications demanding durability, corrosion resistance, and consistent manual control across larger pipeline sizes.

Specification Value
Type of Valve Butterfly Valve Model R487
Nominal Size DN 100
Operating Pressure 16 Bar
Body Configuration Intermediate flange version (Wafer), length FTF EN 558 series 20
Connection Type PN 16 / flange EN 1092, face-to-face dimension FTF EN 558 series 20
Valve Body Material EN-GJS-400-15 (GGG-40), epoxy coated 250 μm
Disc Material 1.4408, investment casting
Shaft Material Shaft 1.4021
Seat EPDM (Seat Loose)
Control Function Manually Operated
Reference R487 100W 33 2A 1 WL 0 AHL14 W
