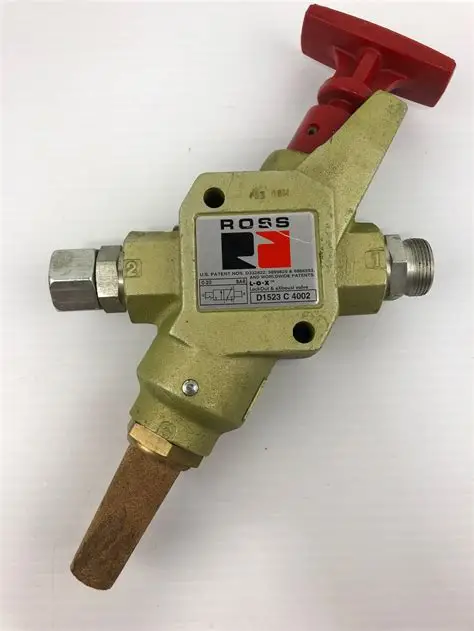

ROSS 1523 C 4002 LOCKOUT VALVE 1523C4002

ROSS 1523 C 4002 LOCKOUT VALVE 1523C4002

https://www.mventus.com/web/image/product.template/10851/image_1920?unique=d5ac607
The ROSS® 15 Series are premium pneumatic energy isolation valves designed for safe and reliable air system control. L-O-X® Valve (Red Handle): Quickly shuts off air supply and exhausts downstream pressure for safe servicing. L-O-X® EEZ-ON® Valve (Blue Handle): Provides the same lockout function with a soft-start feature for gradual pressurization. Built for durability and compliance with international safety standards, these valves are ideal for lockout/tagout applications in industrial environments.
Read More

1,050.00 SR 1050.0 SAR 1,050.00 SR Tax Excluded

Not Available For Sale


  • Brands

This combination does not exist.

Brands ROSS
Contact Us
SKU: VA-04-001
Product Code: D1523C4002



The ROSS® 15 Series are premium pneumatic energy isolation valves designed for safe and reliable air system control. L-O-X® Valve (Red Handle): Quickly shuts off air supply and exhausts downstream pressure for safe servicing. L-O-X® EEZ-ON® Valve (Blue Handle): Provides the same lockout function with a soft-start feature for gradual pressurization. Built for durability and compliance with international safety standards, these valves are ideal for lockout/tagout applications in industrial environments.

Specification Value
Product ROSS 15 Series L-O-X® Valve / L-O-X® Valve with EEZ-ON®
Handle Color-coded: Red = L-O-X® (standard), Blue = L-O-X® EEZ-ON® (soft start)
Construction Spool and sleeve
Mounting In-line
Flow Media Filtered air
Operating Pressure (Modular) 0 – 200 psig (0 – 14 bar)
Operating Pressure (Classic & High Capacity) 0 – 300 psig (0 – 20.7 bar)
Operating Pressure (EEZ-ON®) 0 – 150 psig (0 – 10 bar)
Temperature Range 40 °F to 175 °F (4 °C to 80 °C)
Exhaust Port 3, unrestricted; silencers optional
Lockout Provision Padlockable in closed position (handle/spool lock points)
Sensing Port 1/8 NPT (for optional indicator or pressure switch)
Safety Standards OSHA 29 CFR 1910.147, ANSI/ASSE Z244.1, ISO 13849, EN 13736, ANSI B11 standards
Compatible Lubricants Petroleum-based oils with oxidation inhibitors, ISO 32 or lighter
